Purple Valves
PRPFL091

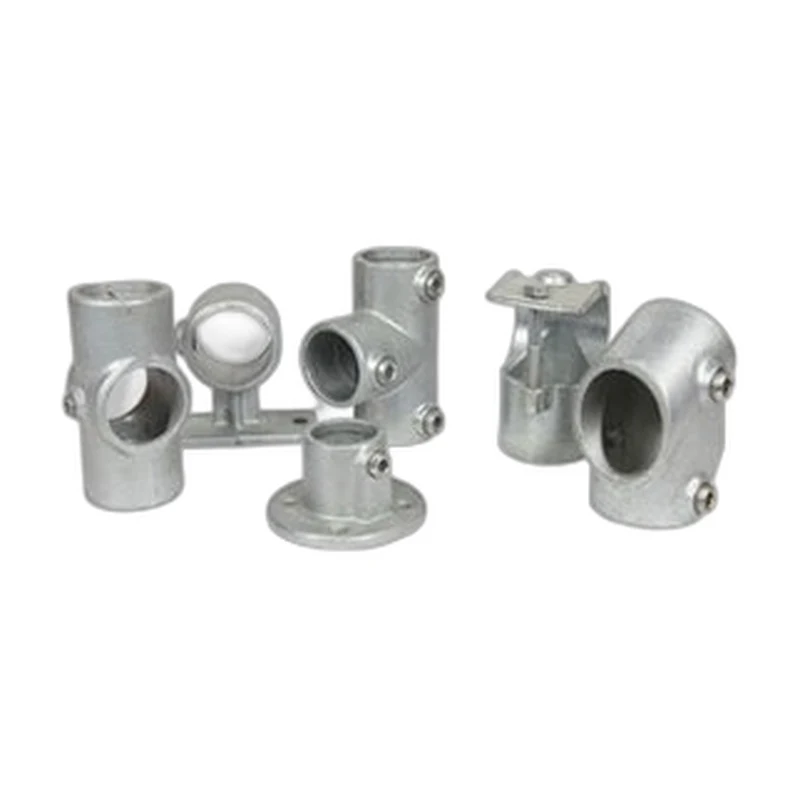

Galvanized Pipe Clamp Fittings
Hot-dip galvanized malleable iron tube clamp fittings for easy bolt-together assembly of steel and aluminium pipe structures.
SizeA27 / B34 / C42 / D48 / E60
These pipe clamp fittings are cast in malleable iron (KTH350-10) and hot-dip galvanized to BS EN1461 and ASTM A153 for durable corrosion protection. Fitted with stainless steel screws, they allow quick, tool-light assembly of steel or aluminium tube into frames, handrails and garden structures across the A27 to E60 size range.
Specifications
Size Range
A27 / B34 / C42 / D48 / E60
End Connections
Clamp (set-screw)
Body Material
Malleable iron KTH350-10, hot-dip galvanized
Applications
Tube frames, handrails and garden structures using steel or aluminium pipe.
Design Standard
BS EN1461 / ASTM A153
Key Features
- Malleable iron, hot-dip galvanized
- Galvanizing min 70 microns
- Stainless steel screws
- Easy bolt-together assembly
Options
- Sizes A27, B34, C42, D48, E60
