Series BVT
PRPLZ146

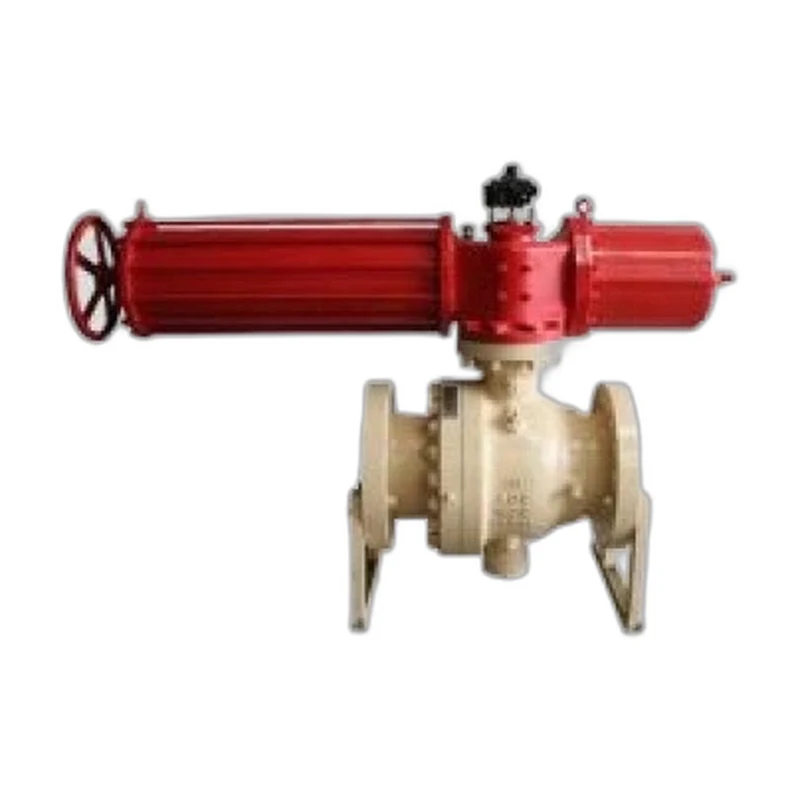

Pneumatic Fixed Ball Valve

A trunnion mounted ball valve with pneumatic actuation, available in carbon or stainless steel from 2 inch to 24 inch and ANSI Class 150 to 2500 for general service, air, water and oil and gas duties.

Size2 inch to 24 inchPressureANSI Class 150 to 2500PortFull Port / Reduced PortBodyTwo Piece / Three Piece
Request a QuoteFull Product Brochure (PDF)
CategoriesBall ValvesTrunnion Mounted Ball Valves
Overview

The Pneumatic Fixed Ball Valve is a trunnion mounted ball valve from the BVT series, designed and tested to API 6D, API 608 and ASME B16.34 for reliable isolation in demanding pipeline applications. It is offered in a two piece or three piece body in carbon steel (A216 WCB) or stainless steel (A351 CF8M), with an A182 F316 ball and stem and a choice of PTFE, Delrin or PEEK seats. Sizes run from 2 inch to 24 inch across ANSI Class 150 to 2500, with full or reduced port options and flanged RF or RTJ end connections. The valve suits general service, air, water and oil and gas media and can be supplied for manual, pneumatic or hydraulic operation.

Technical Detail

Specifications

Product Code
BVT
Size Range
2 inch to 24 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46C to 232C (-50F to 450F)
End Connections
ASME B16.5 RF, RTJ
Body Material
A216 WCB (carbon steel) / A351 CF8M (stainless steel)
Ball / Disc / Wedge Material
A182 F316 (ball)
Seat Material
PTFE, Delrin or PEEK
Stem Material
A182 F316
Port Type
Full Port / Reduced Port
Body Style
Two Piece / Three Piece
Operation
Manual, Pneumatic, Hydraulic
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, API 6D, API 608, BS 5351
Testing Standard
API 598, API 6D, BS 6755
Face to Face Standard
ASME B16.10, API 6D
At a Glance

Key Features

  • Trunnion mounted ball design for low operating torque
  • Two piece or three piece bolted body
  • Full or reduced port options
  • Blowout proof stem
  • Suitable for manual, pneumatic or hydraulic actuation

Options

  • Body: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
  • Seat ring: PTFE, POM or HF (Co-CrA)
  • Actuation: manual, pneumatic or hydraulic

Standards & Certifications

  • API 6D
  • API 608
  • ASME B16.34
  • ASME B16.10
  • ASME B16.5
  • MSS SP-72
  • API 598
  • BS 5351
  • BS 6755
Reference

Dimensions

     Part Name Carbon Steel Stainless Steel
WCB LCB CF8 CF8M CF3 CF3M
Body A216 WCB A105 A352 LF2 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
L-body A216 WCB A105 A352 LCB A350 LF2 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
R-body A216 WCB A105 A352 LCB A350 LF2 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Ball A105/Ep.Cr A182 F304 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Stem A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Seat A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Seat Ring PTFE,POM or HF(Co-CrA)
Gasket PTFE or Flexible Graphite and stainless Steel
O-Ring VITON VITON VITON VITON VITON VITON
Trunnion A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Spring AISI 6160 17-17PH(inconel for NACE)Ni-Cr Alloy
Drain plug A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Bolt A193 B7 A320 L7 A193 B8 A193 B8M
Stem beating PTFE or Stainless Steel and Graphite
Stem seat PTFE PTFE PTFE PTFE PTFE PTFE
Stem spring 17-17PH(inconel for NACE)Ni-Cr Alloy
Small ball A182 F304 A182 F316
Trunnion beating PTFE or Stainless Steel and Graphite
Plug A105 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Spring seat A105 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Bonnet Bolt A193 B7 A320 L7 A320 B8 A193 B8M
Bonnet Nut A194 2H A194 4 A194 8
Pin Carbon Steel or Alloy Steel
Gland A182 F6 A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
Gland flange A216 WCB A352 LCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
Stem packing PTFE or Flexible Graphite
Bonnet A216 WCB A105 A352 F6 A350 LF2 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
                                              CLASS 150
DN
     NPS		 mm
     In		 50 65 80 100 150 200 250 300 350 400 450 500 600 700
2 2-1/2 3 4 6 8 10 12 14 16 18 20 24 28
L(RF) mm
     in		 178 191 203 229 394 457 533 610 686 762 864 914 1067 1245
7 7.5 8 9 15.5 18 21 24 27 30 34 36 42 49
L1(BW) mm
     in		 216 241 283 305 457 521 559 635 762 838 914 991 1143 1346
8.5 9.5 11.13 12 18 20.5 22 25 30 33 36 39 455 53
L2(RTJ) mm
     in		 191 203 216 241 406 470 546 622 699 775 876 927 1080
7.5 8 8.5 9.5 16 18.5 21.5 24.5 27.5 30.5 34.5 36.5 42.5
H mm
     in		 153 165 195 213 272 342 495 580 625 720 790 840 1050 1150
6.05 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.6 28.35 31 33.1 41.34 45.3
Do(W) mm
     in		 400 400 600 850 1100 1500 *350 *350 *600 *600 *800 *800 *800 *800
15.74 15.74 23.62 33.46 43.3 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 31.5
RF
     BW		 Kg
     Kg		 15 19 38 65 97 160 240 390 510 750 895 1190 2100 3000
13 17 35 55 92.8 154 227 365 478 711 868 1138 2015 2900
CLASS 300
DN
     NPS		 mm
     In		 50 65 80 100 150 200 250 300 350 400 450 500 600 700
2 2-1/2 3 4 6 8 10 12 14 16 18 20 24 28
L(RF) mm
     in		 216 241 283 305 403 502 568 648 762 838 914 991 1143 1346
8.5 9.5 11.13 12 15.88 19.75 22.38 25.5 30 33 36 39 45 53
L1(BW) mm
     in		 216 241 283 305 457 521 559 635 762 838 914 991 1143 1346
8.5 9.5 11.13 12 18 20.5 22 25 30 33 36 39 45 53
L2(RTJ) mm
     in		 232 257 298 321 419 518 584 664 778 854 930 1010 1165 1372
9.13 10.13 11.75 12.63 16.5 20.38 23 26.13 30.63 33.63 36.63 39.75 45.89 54
H mm
     in		 153 165 195 213 27.2 342 495 580 625 720 790 840 1050 1150
6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.6 28.35 31 33.1 41.34 45.3
Do(W) mm
     in		 400 400 600 850 1100 1500 *350 *350 *600 *600 *800 *800 *800 *800
15.74 15.74 23.62 33.46 43.3 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5 31.5
RF
     BW		 Kg
     Kg		 18 27 47 80 118 200 365 530 740 1030 1320 1540 2600 3900
14 22 38 65 105 185 342 503 713 1000 1285 1498 2540 3825
                                                       CLASS 600
DN
     NPS		 mm
     In		 50 65 80 100 150 200 250 300 350 400 450 500
2 2-1/2 3 4 6 8 10 12 14 16 18 20
L(RF) mm
     in		 292 330 356 432 559 660 787 838 889 991 1092 1194
11.5 13 14 17 22 26 31 33 35 39 43 47
L1(BW) mm
     in		 292 330 356 432 559 660 787 838 889 991 1092 1194
11.5 13 14 17 22 26 31 33 35 39 43 47
L2(RTJ) mm
     in		 295 333 359 435 562 664 791 841 892 994 1095 1200
11.63 13.13 14.13 17.13 22.13 26.13 31.13 33.13 35 39.5 43.1 47.3
H mm
     in		 153 165 195 213 272 342 495 580 630 725 800 850
6.02 6.5 7.68 8.39 10.7 13.5 19.5 22.85 24.8 28.5 31.5 33.5
Do(W) mm
     in		 600 850 1250 1300 1500 *350 *350 *600 *600 *800 *800 *800
23.62 33.46 49.25 51.22 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5
RF
     BW		 Kg
     Kg		 38 56 66 122 217 350 660 820 830 1160 1420 1650
31 51 58 117 200 327 605 790 800 1030 1305 1505
CLASS 900
DN
     NPS		 mm
     In		 50 65 80 100 150 200 250 300 350 400 450 500
2 2-1/2 3 4 6 8 10 12 14 16 18 20
L(RF) mm
     in		 368 419 381 457 610 737 838 965 1029 1130 1219 1321
14.5 16.5 15 18 24 29 33 38 40.5 44.5 48 52
L1(BW) mm
     in		 368 419 381 457 610 737 838 968 1029 1130 1219 1321
14.5 16.5 15 18 24 29 33 38 40.5 44.5 48 52
L2(RTJ) mm
     in		 371 422 384 460 613 740 841 968 1032 1133 1222 1327
14.63 16.63 15.13 18.13 24.13 29.13 33.13 38.13 40.6 44.6 48.1 52.3
H mm
     in		 162 195 205 239 290 355 510 595 650 750 835 900
6.36 7.7 80.5 9.41 11.4 14 20 23.4 25.6 29.5 32.9 35.4
Do(W) mm
     in		 600 850 1250 1300 1500 *350 *350 *600 *600 *800 *800 *800
23.62 33.46 49.25 51.22 59 13.8 13.8 23.6 23.6 31.5 31.5 31.5
RF
     BW		 Kg
     Kg		 48 60 78 138 250 375 710 890 910 1200 1480 1760
44.5 52.5 75.2 131 232 355 690 827 870 1100 1210 1620
                                                    CLASS 1500
DN
     NPS		 mm
     In		 50 65 80 100 150 200 250 300 350 400
2 2-1/2 3 4 6 8 10 12 14 16
L(RF) mm
     in		 368 419 470 546 705 832 991 1130 1257 1384
14.5 16.5 18.5 21.5 27.75 32.75 39 44.5 49.5 54.5
L1(BW) mm
     in		 368 419 470 546 705 832 991 1130 1257 1384
14.5 16.5 18.5 21.5 27.75 32.75 39 44.5 49.5 54.5
L2(RTJ) mm
     in		 371 422 473 549 711 842 1000.5 1146 1276 1406
14.63 16.63 18.63 21.63 28 33.13 39.38 45.13 50.2 55.4
H mm
     in		 197 220 254 290 355 510 595 655 680 780
7.74 8.7 10 11.44 14 20 23.5 25.8 26.8 30.7
Do(W) mm
     in		 600 *350 *350 *600 *600 *800 *800 *800 *800 *800
23.6 13.8 13.8 23.6 23.6 31.5 31.5 31.5 31.5 31.5
RF
     BW		 Kg
     Kg		 55 80 97 162 290 390 745 935 1000 1305
51 71 92.8 157.5 227 335 697 885 915 1200
CLASS 2500
DN
     NPS		 mm
     in		 40 50 65 80 100 125 150 200 250
    1-1/2 2 2-1/2 3 4 5 6 8 10
L(RF) mm 384 451 508 578 673 794 914 1022 1270
L1(BW) mm 384 451 508 578 673 794 914 1022 1270
L2(RTJ) mm 387 454 514 584 683 807 927 1038 1292
d mm 38 42 52 62 87 100 131 179 223
H mm 290 320 350 400 425 500 590 610 660
H1 mm 105 120 130 150 180 210 230 290 350
W mm 300 300 300 300 400 400 500 500 600
Weight Kg 70 104 140 202 305 530 760 1200 2080
