Purple Valves

PRPLZ246

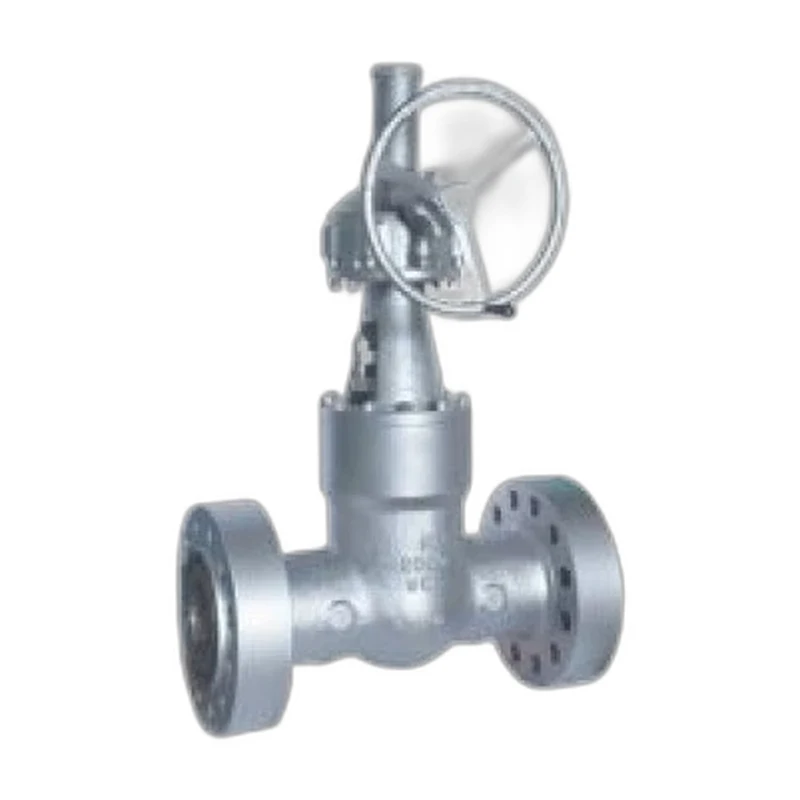

Pressure Seal Bonnet Gate Valve

Cast steel pressure-seal bonnet gate valve providing tight, self-energising sealing for high-pressure isolation duty.

SizeDN50 to DN600 (2" to 24")PressureANSI Class 600 to 2500PortFull BoreBodyPressure-seal bonnet

Request a Quote Full Product Brochure (PDF)

CategoriesGate Valves Cast Steel Gate Valves

Overview

The ZQV Pressure-Seal Bonnet Gate Valve uses a self-energising bonnet joint in which rising line pressure forces the seal ring tighter against the body, eliminating the leakage paths common to bolted-bonnet designs at high pressures. Acting as a straightforward on/off isolation valve, it opens to a full bore for unrestricted flow and closes on a hardfaced wedge for bubble-tight shut-off. The compact, high-integrity bonnet makes it a preferred choice for steam, hydrocarbon and high-pressure process lines where reliability and minimal maintenance are essential.

Technical Detail

Specifications

Size Range

DN50 to DN600 (2" to 24")

Pressure Rating

ANSI Class 600 to 2500

Temperature Range

-29°C to 538°C (-20°F to 1000°F)

End Connections

Butt Weld (BW) / Flanged RF

Body Material

ASTM A216 WCB / A217 WC6 cast steel

Ball / Disc / Wedge Material

Stellite-hardfaced flexible wedge

Seat Material

13Cr / Stellite hardfaced

Stem Material

Forged 410 stainless steel

Port Type

Full Bore

Body Style

Pressure-seal bonnet

Operation

Handwheel / Gear / Electric

Applications

High-pressure steam, hydrocarbon and process isolation where bolted bonnets are unsuitable.

Design Standard

API 600 / 602 / 603

Testing Standard

API 598

Face to Face Standard

ASME B16.10

At a Glance

Key Features

Self-energising pressure-seal bonnet for leak-free high-pressure service
Full-bore wedge for unrestricted flow
Hardfaced trim for long service life
Compact, high-integrity body design

Options

Gear or electric actuation
Butt weld or flanged ends
Various trim materials

Standards & Certifications

API 600
ASME B16.34
ASME B16.10
API 598

Reference

Dimensions

ITEM	PART NAME	MATERIAL
1	Body	ASTM A216 GR.WCB
2	Seat Ring	ASTM A105 + Stellite Faced
3	Disc	ASTM A216 GR.WCB+Stellite Faced
4	Stem	ASTM A182 GR.F6a
5	Gasket,Ring Joint	Soft Iron
6	Bonnet	ASTM A216 GR.WCB
7	Bonnet Bolt Nuts	ASTM A194 GR.2H
8	Bonnet Bolts	ASTM A193 GR.B7
9	Backseat Bushing	ASTM A276 Type 410
10	Stem Packing	Braided Graphite & Die formed Graphite Ring
11	Eye Bolt Pins	Carbon Steel
12	Gland Eye Bolts	ASTM A307 GR.B
13	Gland	ASTM A276 Type 410
14	Gland Flange	ASTM A216 GR.WCB
15	Eye Bolt Nuts	ASTM A194 GR.2H
16	Grease Nipple	Carbon Steel
17	Stem Nut	ASTM A439 GR.D-2
18	Retaining Nut	Carbon Steel
19	Handwheel	Ductile Iron
20	Handwheel Nut	Carbon Steel
21	Screw	Carbon Steel
22	Yoke	ASTM A216 GR.WCB
23	Yoke Pan Bolt Nuts	ASTM A194 GR.2H
24	Yoke Pan Bolts	ASTM A193 GR.B7
25	Bearing	Steel
26	Lantern Ring On Request	ASTM A276 Type 410

ITEM	PART NAME	MATERIAL
1	Body	ASTM A216 GR.WCB
2	Seat Ring	ASTM A105+Stellite Faced
3	Disc	ASTM A216 GR.WCB+Stellite Faced
4	Stem	ASTM A182 GR.F6
5	Bonnet	ASTM A216 GR.WCB+Stellite Faced
6	Gasket	ASTM A182 GR.F304
7	Thrust Ring	ASTM A276 Type 410
8	Separate Ring	Carbon Steel
9	Lantern Ring On Request	ASTM A276 Type 410
10	Bonnet Retainer	Carbon Steel
11	Bonnet Bolts	ASTM A193 GR.B7
12	Bonnet Bolt Nuts	ASTM A194 GR.2H
13	Yoke Bolts	ASTM A193 GR.B7
14	Yoke Bolt Nuts	ASTM A194 GR.2H
15	Gland Eye	ASTM A216 GR.WCB
16	Stem Packing	Braided Graphite & Die formed Graphite Ring
17	Gland	ASTM A276 Type 410
18	Gland Flange	ASTM A216 GR.WCB
19	Eye Bolt Pins	Carbon Steel
20	Gland Eye Bolts	ASTM A193 GR.B7
21	Eye Bolt Nuts	ASTM A194 GR.2H
22	Yoke	ASTM A216 GR.WCB
23	Bearing	Steel
24	Stem Nut	ASTM A439 GR.D-2
25	Grease Nipple	Carbon Steel
26	Retaining Nut	Carbon Steel
27	Handwheel	Ductile Iron
28	Handwheel Nut	Carbon Steel

Dimensions and Weights								CLASS 900
SIZE	in mm	2″ 50	2.5″ 65	3″ 80	4″ 100	6″ 150	8″ 200	10″ 250	12″ 300
L	in mm	14.50 368	16.50 419	15.00 381	18.00 457	24.00 610	29.00 737	33.00 838	38.00 965
L1	in mm	8.50 216	10.00 254	12.00 305	14.00 356	20.00 508	26.00 660	31.00 787	36.00 914
L2	in mm	14.62 371	16.62 422	15.12 384	18.12 460	24.12 613	29.12 740	33.12 841	38.12 968
H	in mm	24.00 610	30.00 762	30.71 780	33.86 860	40.35 1025	50.63 1286	60.63 1540	70.28 1785
W	in mm	12 300	14 350	14 350	16 400	20 500	24 610	24 610	24 610
Weight BW	kg	50	72	86	110	202	530	782	1135

Dimensions and Weights								CLASS 2500
SIZE	in mm	2″ 50	2.5″ 65	3″ 80	4″ 100	6″ 150	8″ 200	10″ 250	12″ 300
L	in mm	17.75 451	20.00 508	22.75 578	26.50 673	36.00 914	40.25 1022	50.00 1270	56.00 1422
L1	in mm	11.00 279	13.00 330	14.50 368	18.00 457	24.00 610	30.00 762	36.00 914	41.00 1041
L2	in mm	17.87 454	20.25 514	23.00 584	26.88 683	36.50 927	40.87 1038	50.88 1292	56.88 1445
H	in mm	24.00 610	30.55 776	30.90 785	34.40 874	44.02 1118	53.46 1358	66.14 1680	74.50 1892
W	in mm	14 350	18 450	18 450	20 500	24 610	24 610	24 610	24 610
Weight BW	kg	60	112	122	192	480	830	1678	2320

Dimensions and Weights								CLASS 1500
SIZE	in mm	2″ 50	2.5″ 65	3″ 80	4″ 100	6″ 150	8″ 200	10″ 250	12″ 300
L	in mm	14.50 368	16.50 419	18.50 470	21.50 546	27.75 705	32.75 832	39.00 991	44.50 1130
L1	in mm	8.50 216	10.00 254	12.00 305	16.00 406	22.00 559	28.00 711	34.00 864	39.00 991
L2	in mm	14.62 371	16.62 422	18.62 473	21.62 549	28.00 711	33.13 842	39.38 1000	45.12 1146
H	in mm	24.00 610	30.55 776	30.90 785	34.40 874	40.35 1025	53.46 1358	61.74 1568	74.50 1892
W	in mm	12 300	16 400	16 400	20 500	24 600	24 610	24 610	24 610
Weight BW	kg	50	78	92	145	230	540	1060	1184
