Purple Valves
PRPFL092

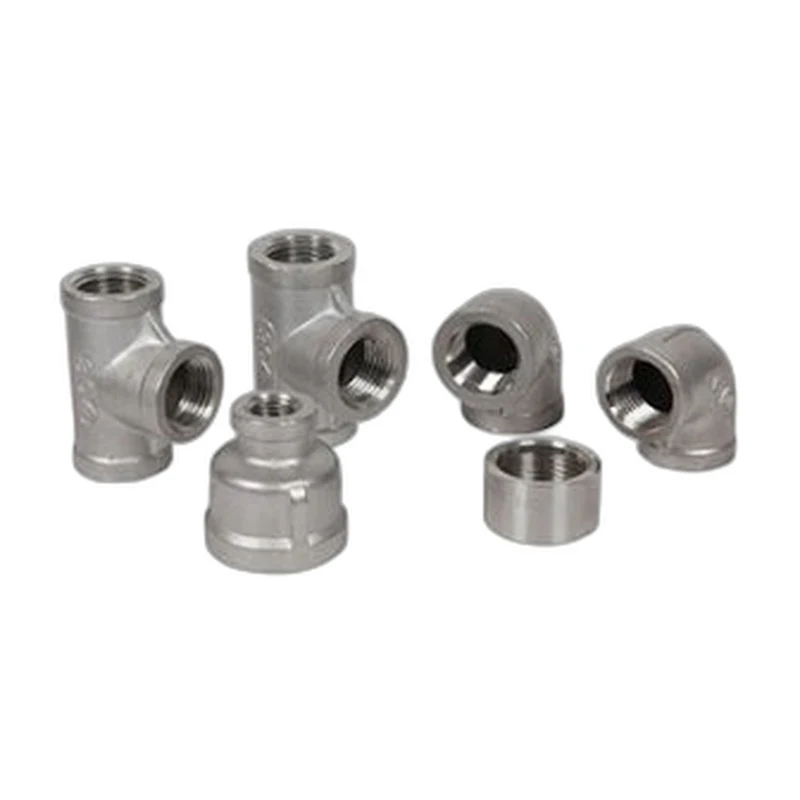

Malleable Iron Pipe Fittings
Threaded malleable iron pipe fittings to American and EN standards for low-pressure water, gas and air pipework.
Size1/4 inch to 4 inch (EN: 1/8 inch to 6 inch)Pressure300 PSI (EN: 150/300 PSI)BodyThreaded pipe fitting
These malleable iron pipe fittings join threaded pipe in low-pressure water, gas, air and general plumbing systems. Manufactured from ASTM A197/A47 malleable iron with threads to ANSI B1.20.1 (or ISO7/1 for EN-standard items) and dimensions to ASME B16.3/B16.14, they offer the toughness and ductility needed for site assembly and rework. The American-standard range covers 1/4 inch to 4 inch at 300 PSI, with EN-standard sizes extending from 1/8 inch to 6 inch.
Specifications
Size Range
1/4 inch to 4 inch (EN: 1/8 inch to 6 inch)
Pressure Rating
300 PSI (EN: 150/300 PSI)
End Connections
Threaded (ANSI B1.20.1 / ISO7/1)
Body Material
Malleable iron ASTM A197 / A47
Body Style
Threaded pipe fitting
Operation
N/A (pipe fitting)
Applications
Suited to low-pressure water, gas and compressed air pipework, plus general plumbing and structural pipe assemblies.
Design Standard
ASME B16.3 / B16.14 / B16.39 (EN: ISO49 / DIN2950)
Key Features
- Malleable iron ASTM A197/A47
- Threaded to ANSI B1.20.1 / ISO7/1
- American and EN standard ranges
- 300 PSI working pressure (American)
- Sizes 1/4 inch to 4 inch (EN to 6 inch)
Options
- American standard
- EN standard
