Purple Valves
PRPFL071

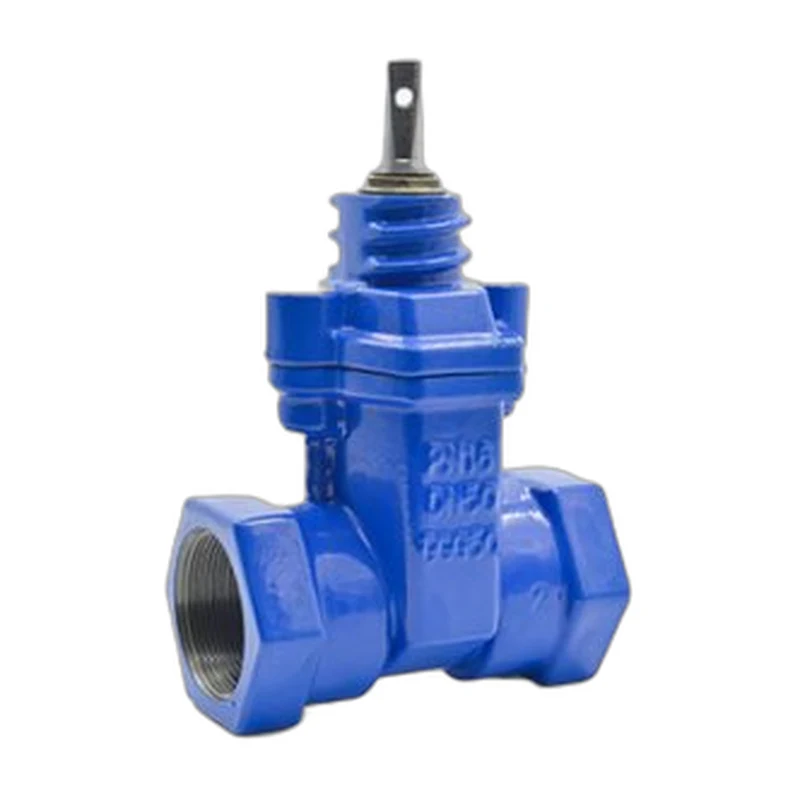

Threaded Resilient Seat Gate Valve DIN3352 (RG13)
Small-bore threaded DIN3352 resilient-seated gate valve in ductile iron for maintenance-free water isolation.
SizeDN15-DN50BodyResilient wedge gate
The RG13 is a threaded-end resilient seat gate valve designed to DIN3352 for small-bore water installations from DN15 to DN50. Its rubber-encapsulated wedge seals against a smooth full bore so no seat pocket can collect debris, and the ductile iron body with RAL5017 epoxy coating, NPT or BSPT threads and SS stem provides reliable, long-life service to 100 degrees C with minimal maintenance.
Specifications
Size Range
DN15-DN50
Temperature Range
Up to 100 C
End Connections
Threaded (NPT / BSPT)
Body Material
Ductile Iron GGG50
Seat Material
EPDM/NBR
Stem Material
SS X20Cr13
Body Style
Resilient wedge gate
Operation
Handwheel
Applications
Small-bore water installations requiring maintenance-free isolation.
Design Standard
DIN3352
Testing Standard
EN12266 / ISO 5208
Key Features
- Rubber-encapsulated wedge
- NPT/BSPT threaded ends
- RAL5017 epoxy coated
- Maintenance-free design
- Seat test 17.6bar / shell test 24bar
Options
- Thread bonnet available
