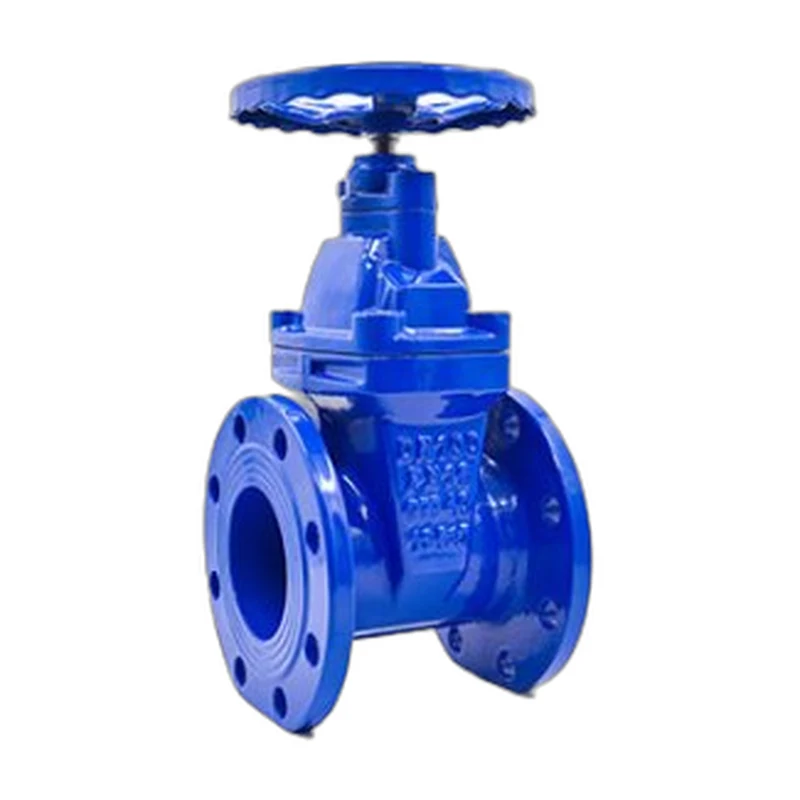

RG04-F4-Nrs Gland Type DIN3352 / EN1171 Resilient Seated Gate Valve (Gland Type)
A gland-type, non-rising-stem resilient-seated gate valve to DIN3352/EN1171 with a rubber-encapsulated wedge for water service.
This resilient-seated gate valve uses a fully rubber-encapsulated ductile iron wedge that seals against a smooth, unobstructed bore, giving drip-tight closure and a clear full-bore flow path when open. The gland-type, non-rising-stem design with a replaceable O-ring seal keeps maintenance simple, while heavy fusion-bonded epoxy coating (minimum 250 microns, RAL5017) inside and out protects it for buried and exposed water duties. Built to DIN3352, EN1171 and EN1074 across DN50 to DN600 at 25 bar working pressure.
Specifications
Key Features
- Non-rising stem, gland type
- Rubber-encapsulated ductile iron wedge
- Replaceable O-ring seal
- Brass wedge nut
- RAL5017 FBE coating min 250 micron inside and out
- 25 bar working pressure
