Purple Valves
PRPFL074

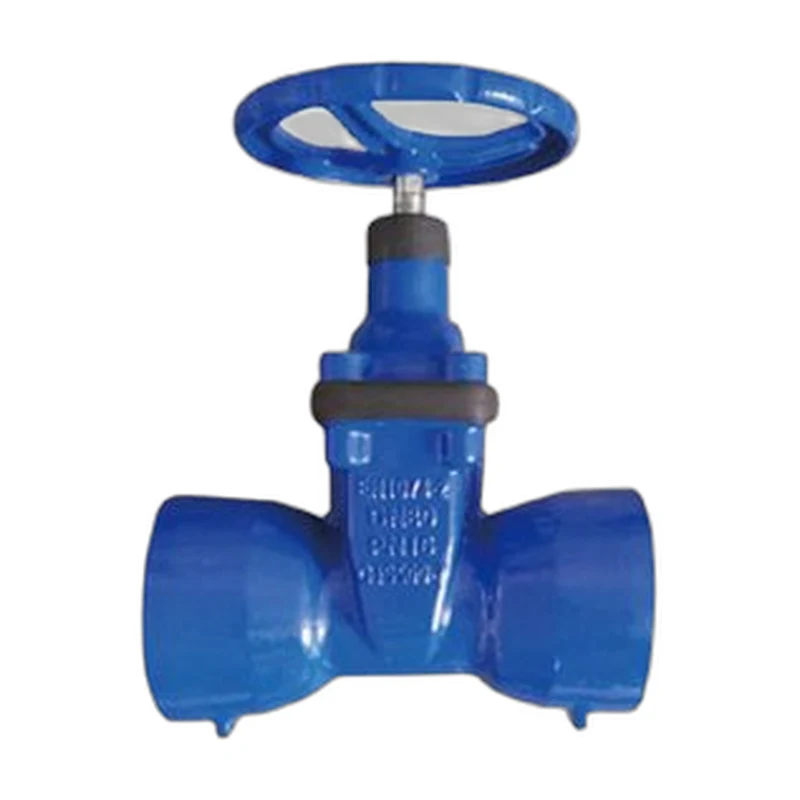

Socket End Resilient Seat Gate Valve for DI Pipe (RG12)
Non-rising stem resilient-seated gate valve with socket ends for direct connection to ductile iron pipe.
SizeDN50-DN300Pressure250 PSI / 17.2 BarBodyResilient wedge gate, non-rising stem
The RG12 is a non-rising stem resilient seat gate valve with integral socket ends that connect directly to ductile iron pipe, eliminating separate adaptors. Built to DIN3352 and SABS 664 with socket dimensions to ISO 4422, its rubber-encapsulated ductile iron wedge and fusion-bonded epoxy coating give durable, leak-tight isolation across DN50 to DN300 at 250 PSI for buried water distribution networks.
Specifications
Size Range
DN50-DN300
Pressure Rating
250 PSI / 17.2 Bar
End Connections
Socket (for DI pipe)
Body Material
Ductile Iron GGG50
Seat Material
EPDM
Stem Material
SS420
Body Style
Resilient wedge gate, non-rising stem
Operation
Handwheel
Applications
Buried ductile iron water distribution networks.
Design Standard
DIN3352 / SABS 664
Testing Standard
ISO 5208
Face to Face Standard
DIN3202 F5 / SABS 664
Key Features
- Integral DI pipe socket ends
- Rubber-encapsulated wedge, brass wedge nut
- Fusion-bonded epoxy coated, RAL5017 200 micron
- Full bore, non-rising stem
- Working pressure 250 PSI
Options
- Sizes DN50 to DN300
