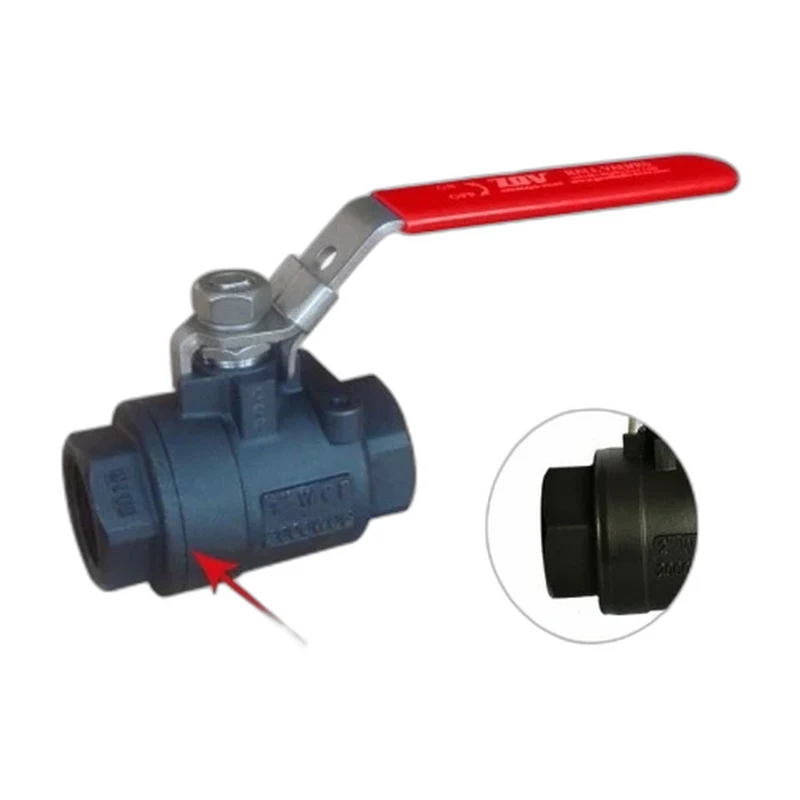

Seal Welded Ball Valve 2000PSI (138 Bar)
A seal-welded ball valve rated to 2000 PSI WOG (138 bar) for leak-tight threaded isolation.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 4" size range, with a maximum allowable operating pressure of 2000 PSI WOG (138 bar). The ASTM A351 CF8M (stainless) / ASTM A216 WCB (carbon steel) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty. The seal-welded body construction eliminates external leak paths for added integrity under pressure.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG (138 bar)
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
- Seal-welded body for leak-tight integrity
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
Dimensions
| Size | 1/4” to 4” |
| Port | Full Port |
| Pressure | 2000PSI 138 BAR |
| Body/Cap | ASTM A216 WCB/ ASTM A351 CF8M |
| Ball / Stem | SS Trim SS420/SS304/SS316 |
| Seat | RPTFE / MPTFE |
| Max Temp.: | 232 ° |
| End | ASME B1.20.1(NPT)/DIN 259/DIN2999/BSP/PT |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2” 3/4” 1”1-1/2” 2” |
| Pressure Rating of Valve | 1500PSI/2000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
