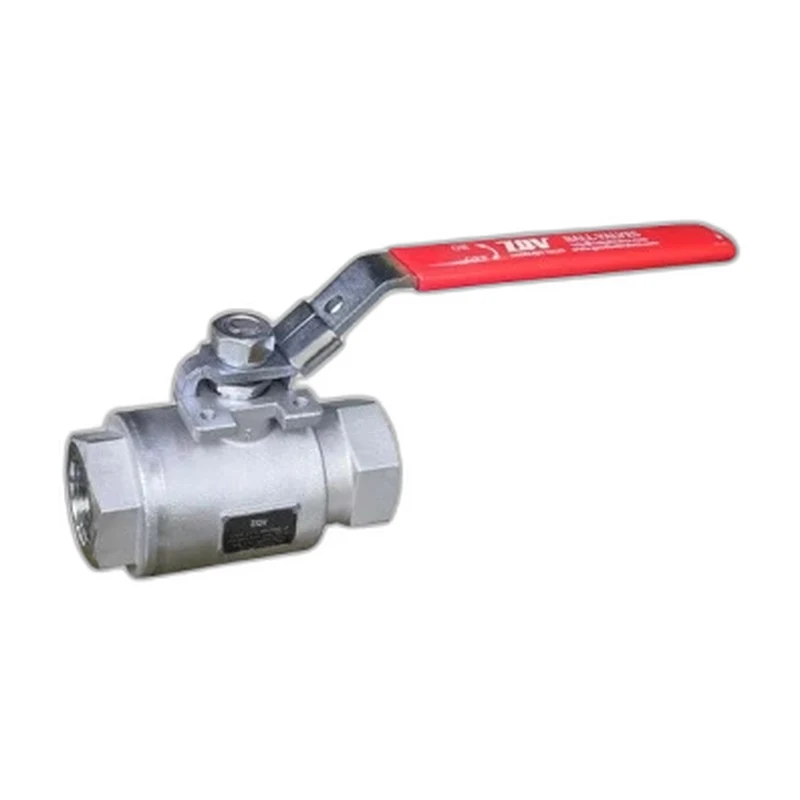

Seal-Welded FNPT Ball Valves 6000PSI
Seal-Welded FNPT Ball Valves 6000PSI engineered for reliable shut-off and isolation in general service, air, water, oil & gas applications.
The Seal-Welded FNPT Ball Valves 6000PSI from ZQV is a two piece ball valve built for dependable isolation across a size range of 1/4" to 2". Constructed with 316 Stainless Steel (A351 CF8M) / Carbon Steel (A216 WCB) body materials and a 316 Stainless Steel (A182 F316) ball and 316 Stainless Steel (A182 F316) stem, it delivers durable performance with a Delrin / Peek seat for tight sealing. Rated to 6000 PSI (WOG) and suitable for service from -46°C to 232°C (-50°F to 450°F), the valve features threaded npt (asme b1.20.1) connections and a full port bore. Manufactured to ASME B16.34, MSS SP-110 with testing per MSS SP-72, API 598, it is well suited to general service, air, water, and oil and gas duties.
Specifications
Key Features
- Full Port bore for optimised flow
- Delrin / Peek seat for reliable bi-directional sealing
- 316 Stainless Steel (A351 CF8M) / Carbon Steel (A216 WCB) body construction
- Blowout-proof stem design
- Designed and tested to recognised industry standards
Options
- Lever or gearbox operation
- Pneumatic or electric actuation available
- Alternative seat materials on request
Standards & Certifications
- ASME B16.34 / MSS SP-110
- Tested per MSS SP-72, API 598
