Series SJ100D
PRPLJ019

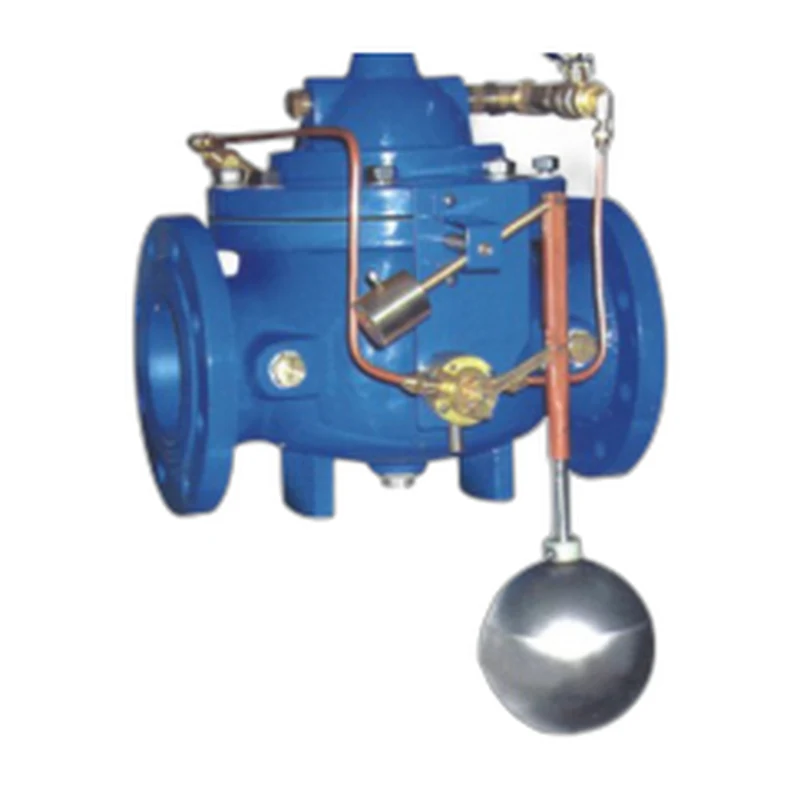

SJ100D Water Level Setting Valve
A water level setting valve that automatically fills a tank to a set high level and shuts off, reopening when the level falls to the low setpoint.
SizeDN50 to DN600PressurePN10 / PN16BodyDiaphragm hydraulic control valve
The SJ100D water level setting valve maintains tank levels between adjustable high and low setpoints, opening to refill as the level drops and closing drip-tight once the upper level is reached. The hydraulically actuated main valve provides smooth, non-slam operation and dependable level holding for elevated and ground-level tanks.
Specifications
Product Code
SJ100D
Size Range
DN50 to DN600
Pressure Rating
PN10 / PN16
End Connections
Flanged
Body Material
Ductile iron, epoxy coated
Body Style
Diaphragm hydraulic control valve
Operation
Level pilot, hydraulically actuated
Applications
Automatic tank level control
Design Standard
GB/T, manufacturer standard
Key Features
- Adjustable high/low level setpoints
- Drip-tight shut-off
- Non-slam operation
- Reliable automatic filling
