Series SJ100X
PRPLJ020

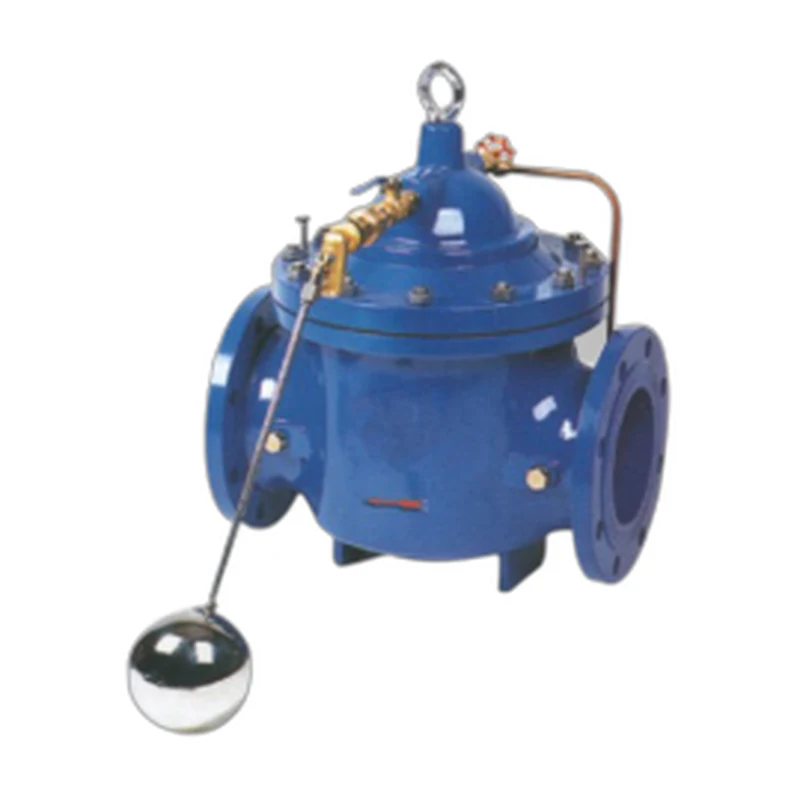

SJ100X Remote-Controlled Floating Valve
A remote-controlled float valve that maintains reservoir or tank level using a hydraulically actuated main valve and a remote float pilot.
SizeDN50 to DN600PressurePN10 / PN16BodyDiaphragm hydraulic control valve
The SJ100X remote-controlled floating valve controls tank and reservoir levels by sensing water level through a remote float pilot, which commands the hydraulically actuated diaphragm main valve to open or close. It provides smooth, non-slamming operation and reliable level holding without continuous electrical power.
Specifications
Product Code
SJ100X
Size Range
DN50 to DN600
Pressure Rating
PN10 / PN16
End Connections
Flanged
Body Material
Ductile iron, epoxy coated
Body Style
Diaphragm hydraulic control valve
Operation
Remote float pilot, hydraulically actuated
Applications
Reservoir and tank level control
Design Standard
GB/T, manufacturer standard
Key Features
- Automatic level holding
- Smooth non-slam operation
- Remote float sensing
- No external power required
