Series SJ101X
PRPLJ021

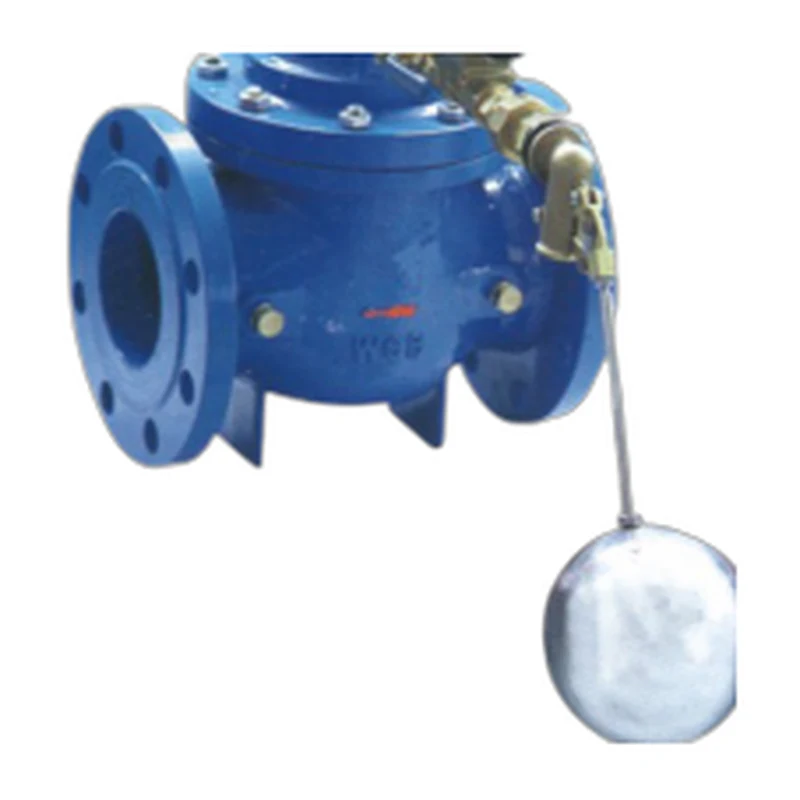

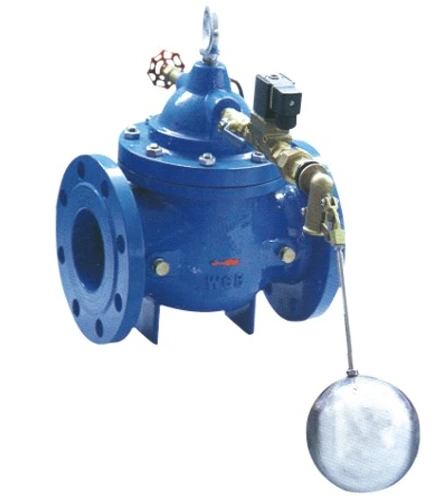

SJ101X Level Electromotion Control Valve
An electromotion level control valve combining electric level signalling with hydraulic actuation for precise automated tank level management.
SizeDN50 to DN600PressurePN10 / PN16BodyDiaphragm hydraulic control valve
The SJ101X level electromotion control valve uses electrode or electronic level sensing to drive an electric pilot on a hydraulically actuated main valve, delivering accurate, programmable tank level control with high and low setpoints. It suits elevated tanks and treatment basins where precise level bands are required.
Specifications
Product Code
SJ101X
Size Range
DN50 to DN600
Pressure Rating
PN10 / PN16
End Connections
Flanged
Body Material
Ductile iron, epoxy coated
Body Style
Diaphragm hydraulic control valve
Operation
Electric level pilot, hydraulically actuated
Applications
Automated tank and basin level control
Design Standard
GB/T, manufacturer standard
Key Features
- Programmable high/low level setpoints
- Electric level sensing
- Smooth hydraulic actuation
- Reliable automated filling
