Purple Valves
PRPLZ086

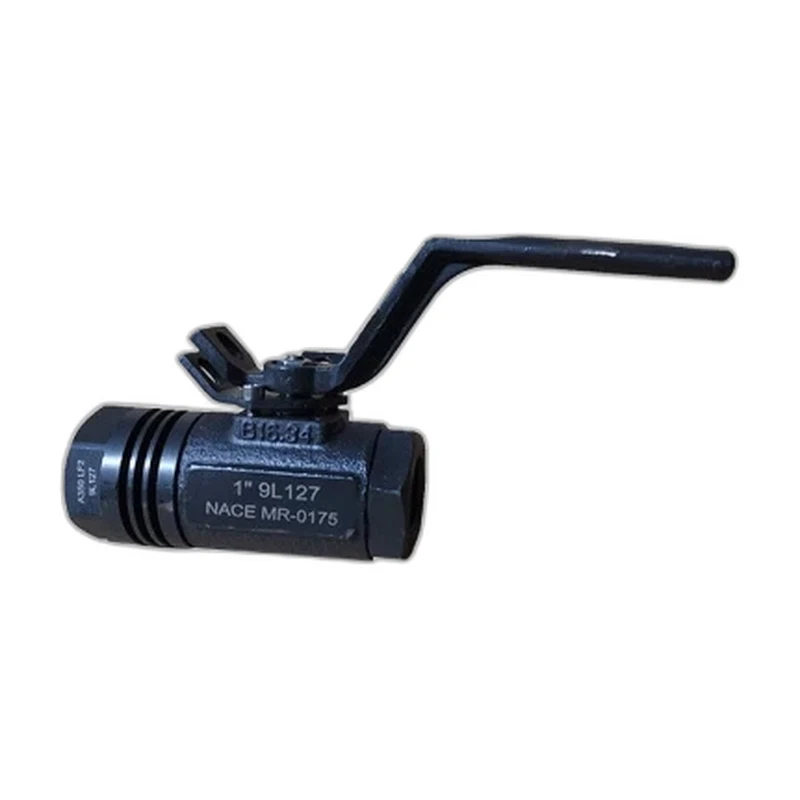

Socket Weld and Threaded End Floating Ball Valves
A three-piece floating ball valve with socket-weld and threaded ends for high-pressure general and oil and gas service.
Size1/4" to 2"Pressure3000 PSI (WOG) to 6000 PSIPortFull Port / Reduced PortBodyThree Piece
This three-piece floating ball valve offers both socket-weld and threaded end connections to ASME B16.11, with body materials of A351 CF8M, A105 or LF2 to suit varied conditions. Sized from 1/4 inch to 2 inch with full or reduced port options and ratings to 6000 PSI, it uses a floating ball with Delrin or PEEK seats for tight shut-off. The bolted three-piece body enables straightforward seat and seal maintenance in the line.
Specifications
Size Range
1/4" to 2"
Pressure Rating
3000 PSI (WOG) to 6000 PSI
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Socket Weld / Threaded ASME B16.11
Body Material
A351 CF8M / A105 / LF2
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
Delrin / PEEK
Stem Material
A182 F316 stainless
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, API 607
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Floating ball design for tight shut-off
- Socket-weld and threaded end options
- Three-piece bolted body
- Ratings to 6000 PSI
- Delrin or PEEK seats
Options
- Socket weld or threaded ends
- Full or reduced port
- Stainless, carbon or low-temp body
Standards & Certifications
- ASME B16.34
- API 607 fire-safe
- MSS SP-72
- API 598
Dimensions
| SIZE RANGE | NPS 1/2″ – 2″ (DN 15MM – 50MM) |
| PRESSURE CLASS | ASME 800LB / 3000PSI |
| END CONNECTION | SOCKET, SCREWED, WELD END |
| Material | CARBON STEEL(A105,LF2), STAINLESS STEEL(SS316), ALLOY STEEL, NICKEL ALLOY STEEL |
| DESIGN | API 608, BS EN ISO 17292 |
| TESTING | API598, BS EN 12266-1 |
