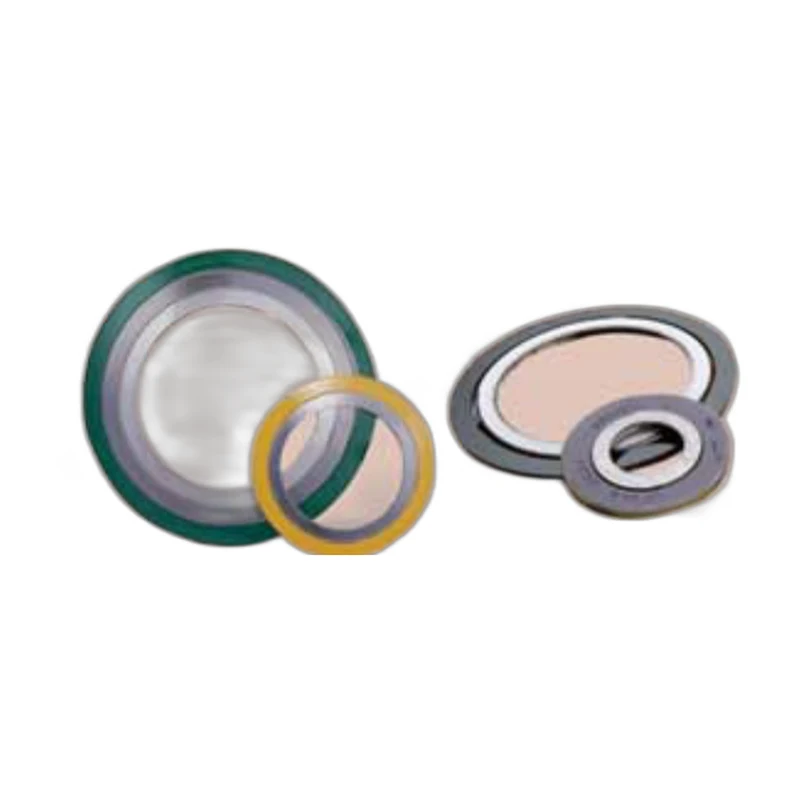

Spiral Wound Gaskets
Spiral wound gaskets combining a metal winding with a soft filler for resilient, high-performance sealing of flanged joints.
Size1/2" to 24"PressureASME Class 150 to 2500BodySpiral wound with guide rings
Spiral wound gaskets are made from a V-shaped metal strip wound alternately with a soft filler (graphite or PTFE), often with inner and outer guide rings. The combination gives excellent recovery and sealing across a wide range of pressures and temperatures, making them a versatile choice for process, refinery and pipeline flanges.
Specifications
Size Range
1/2" to 24"
Pressure Rating
ASME Class 150 to 2500
End Connections
Raised-face / flat-face flanges
Body Material
304/316 SS winding with graphite or PTFE filler, CS outer ring
Body Style
Spiral wound with guide rings
Applications
Process, refinery and pipeline flanged joints
Design Standard
ASME B16.20
Key Features
- Resilient metal-and-filler construction
- Wide pressure/temperature range
- Graphite or PTFE filler options
- Inner and outer guide rings
