Purple Valves
PRPLZ289

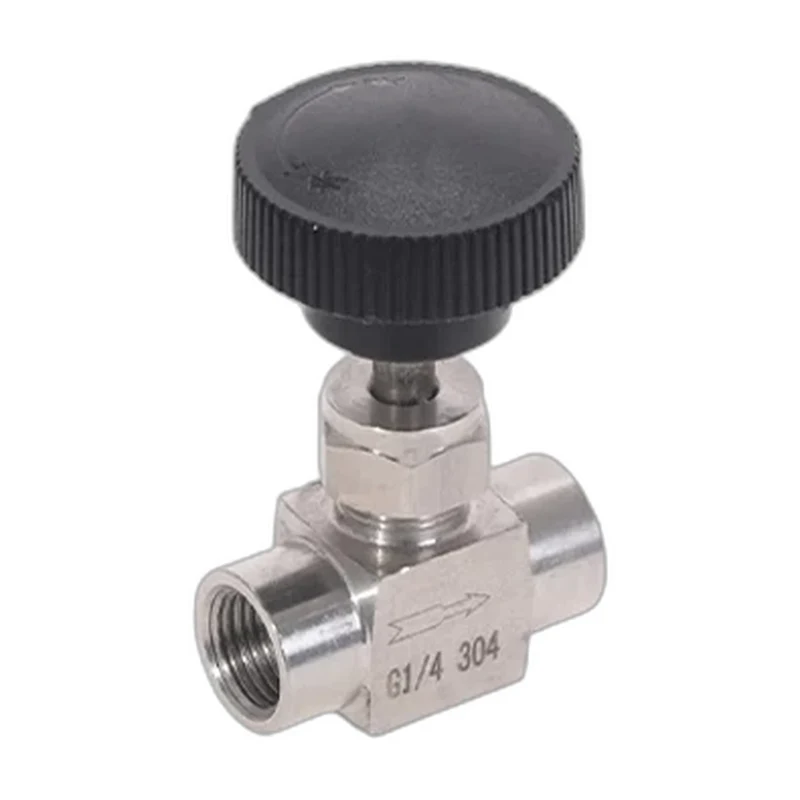

Stainless Steel Blow Down Valve
A stainless needle-type blow-down valve for draining and venting instrument lines and manifolds.
Size1/4" to 2"Pressure3000 PSI (WOG)BodyGlobe pattern
The stainless steel blow-down valve provides the controlled vent and drain function needed when isolating or recalibrating instrument lines, manifolds and gauge hook-ups. A tapered needle seats into a small integral seat for fine flow regulation, letting trapped pressure be bled off smoothly rather than dumped, then sealing tight once the line is clear. Its corrosion-resistant 316 body suits the same instrument and sampling service as the manifolds and needle valves it is fitted to.
Specifications
Size Range
1/4" to 2"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
316 Stainless Steel (A351 CF8M)
Ball / Disc / Wedge Material
Hardened 316 Stainless Steel tapered needle
Seat Material
Metal-to-metal (integral)
Stem Material
316 Stainless Steel (A182 F316)
Body Style
Globe pattern
Operation
Handwheel
Applications
Draining, venting and blow-down of instrument manifolds, gauge lines and sampling points.
Design Standard
ASME B16.34
Testing Standard
API 598 / MSS SP-99
Key Features
- Controlled venting and draining of instrument lines
- Tapered needle and small seat for fine bleed control
- Corrosion-resistant 316 stainless body
- Non-rotating tip protects the seat
- Matches manifold and gauge-valve hook-ups
Options
- Vent port orientation
- Bar or T handle
- Tube or pipe outlet
- Oxygen-clean preparation
Standards & Certifications
- ASME B16.34
- API 598
- MSS SP-99
