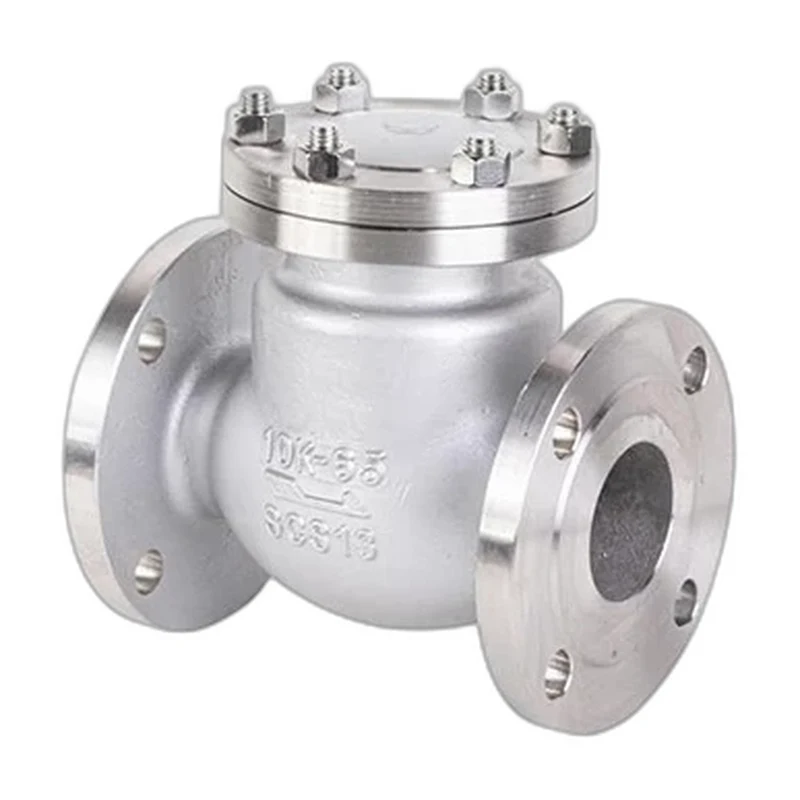

Stainless Steel Check Valve
Automatic non-return check valve providing reliable backflow prevention across a Class 150 to 1500 range.
The Stainless Steel Check Valve is an automatic non-return valve that allows flow in one direction and closes to prevent backflow whenever line pressure reverses. Closure is achieved by a swing element rather than a ball, so the valve seats under reverse pressure with no external operation required. Built in carbon, low-temperature and stainless steel grades across a Class 150 to 1500 pressure range and sizes from 1/2 inch to 24 inch, it suits a broad spread of process, pipeline and utility duties where reliable backflow protection is essential. Design, testing and face-to-face dimensions follow recognised API, ASME, BS and GOST standards.
Specifications
Key Features
- Automatic non-return operation prevents reverse flow
- Swing closure element for reliable seating
- Wide material range including carbon, low-temp and stainless grades
- Class 150 to 1500 pressure ratings, sizes 1/2" to 24"
- Tested to API 598; face-to-face to ASME B16.10
- NACE-compliant options available
Options
- NACE compliant
- Special materials
- Alternative trim selections
Standards & Certifications
- API 594
- API 6D
- API 602
- GOST 3327
- BS 1868
- BS EN 13709
