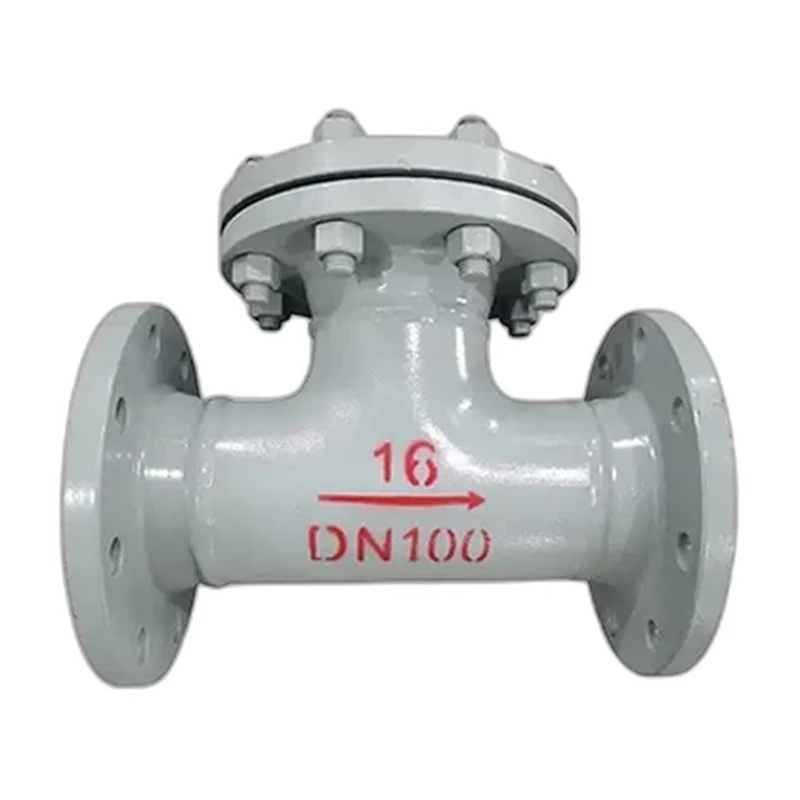

T Strainer
A t strainer offering an inline T-pattern configuration that captures particulates while keeping pressure drop low across the strainer.
The T Strainer uses a T-pattern body to filter debris and particulates from a pipeline while maintaining a compact, inline footprint. Media flows through a cylindrical mesh screen housed within the T-body, where suspended solids are retained and clean fluid continues downstream to protect pumps, valves, meters and other equipment. The straight-through geometry of the T configuration keeps turbulence and pressure loss to a minimum, making it well suited to systems where flow efficiency matters. The screen is accessed through a bolted cap for periodic cleaning and reinstatement. Bodies are offered in A351 CF8M stainless steel or A216 WCB carbon steel.
Specifications
Key Features
- Compact inline T-pattern body for low pressure drop
- Cylindrical removable mesh screen
- Protects downstream pumps, valves and meters from particulates
- Bolted access cap for straightforward cleaning
- Available in stainless steel or carbon steel
Options
- Screen mesh / perforation rating selectable to suit service
- Stainless steel (A351 CF8M) or carbon steel (A216 WCB) body
- Threaded NPT end connections
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS-SP72
