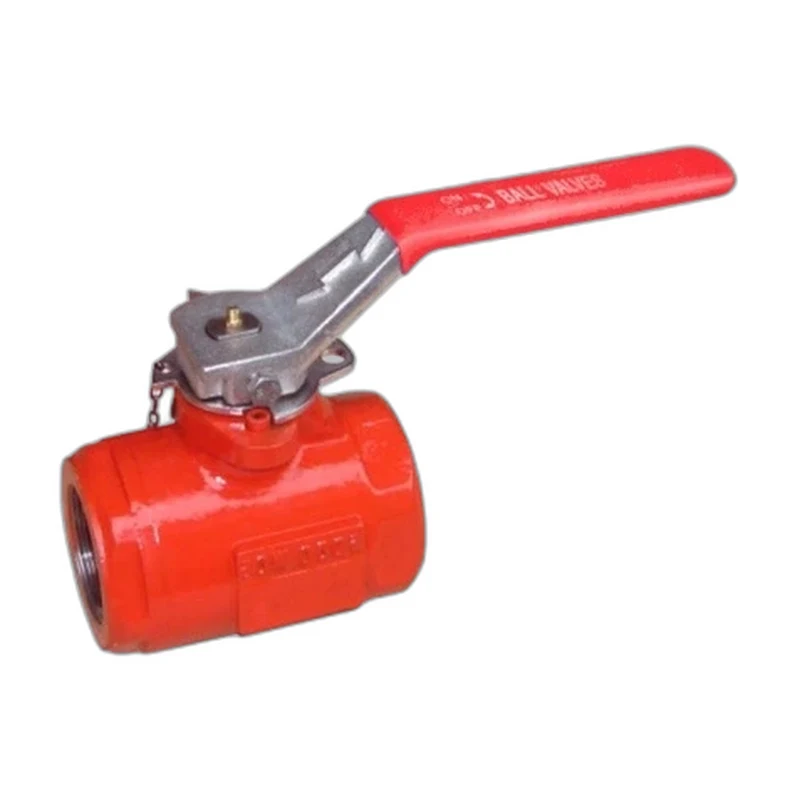

Threaded Carbon Steel Oilfield Floating Ball Valve
A threaded carbon steel floating ball valve for oilfield service rated to 5000 PSI WOG.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1" to 4" size range, with a maximum allowable operating pressure of 3000 PSI to 5000 PSI WOG. The ASTM A105 / AISI 4130 carbon steel body carries an 400 series stainless steel ball and 400 series stainless steel stem, sealing against Delrin / PEEK seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) / API 5B LP connections and a full port / reduced port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 3000 PSI to 5000 PSI WOG
- 400 series stainless steel ball with Delrin / PEEK seats
- Threaded NPT (ASME B1.20.1) / API 5B LP
Options
- Full port or reduced port
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110, API 6D, API 608
- Tested to MSS SP-72, API 598
Dimensions
| No | Part # | Material |
| 1 | Body | A216 WCB |
| 2 | Seat | Delrin |
| 3 | Ball | SS304 |
| 4 | Seal O-ring | HNBR |
| 5 | Cap | A216 WCB |
| 6 | Thrust Bearing | PTFE |
| 7 | Stem O-ring | HNBR |
| 8 | Thrust Bearing | PTFE |
| 9 | Stop Plate | Steel |
| 10 | Retainer Ring | Steel |
| 11 | Handle | Ductile Iron |
| 12 | Stem | A276 420 |
| 13 | Grease Zerw | Copper |
| 14 | Bolt | Carbon Steel |
| 15 | Stop Pin | Steel |
| 16 | Nameplates | Aluminum |
| Part# | Size | Pressure | Weight(LBS) | L | H | d | D |
| CSBV1FP-3000 | 1”x1” | 3000PSI | 2.15(4.67) | 102(4.02) | 93(3.66) | 25(1.00) | 11.5NPT |
| CSBV15FP-3000 | 1-1/2”x1-1/2” | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV2FP-3000 | 2”x2” | 3000PSI | 8.46(18.39) | 152(5.98) | 150(5.91) | 50(2.00) | 11.5NPT |
| CSBV3FP-3000 | 3”x3” | 3000PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
| CSBV2RP-3000 | 2”x1-1/2” | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV4RP-1500 | 4”x3” | 1500PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
