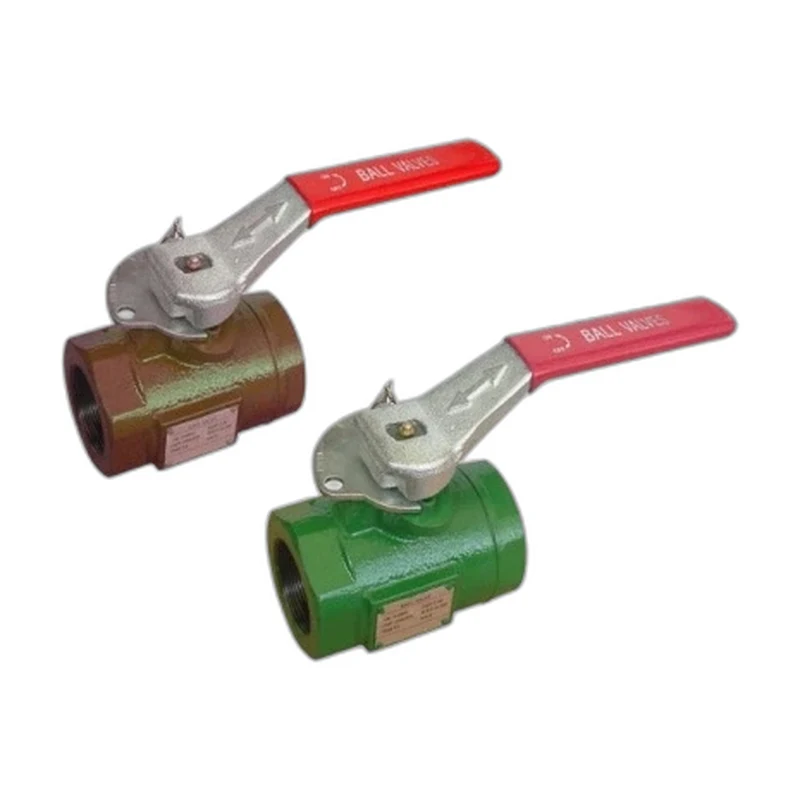

Threaded Ductile Iron Oilfield Floating Ball Valve
A threaded ductile iron floating ball valve for oilfield service rated to 2000 PSI WOG.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1" to 4" size range, with a maximum allowable operating pressure of 1000 PSI to 2000 PSI WOG. The Ductile iron (DI) body carries an 400 series stainless steel ball and 400 series stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) / API 5B LP connections and a full port / reduced port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 1000 PSI to 2000 PSI WOG
- 400 series stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1) / API 5B LP
Options
- Full port or reduced port
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110, API 6D, API 608
- Tested to MSS SP-72, API 598
