Purple Valves
PRPLZ041

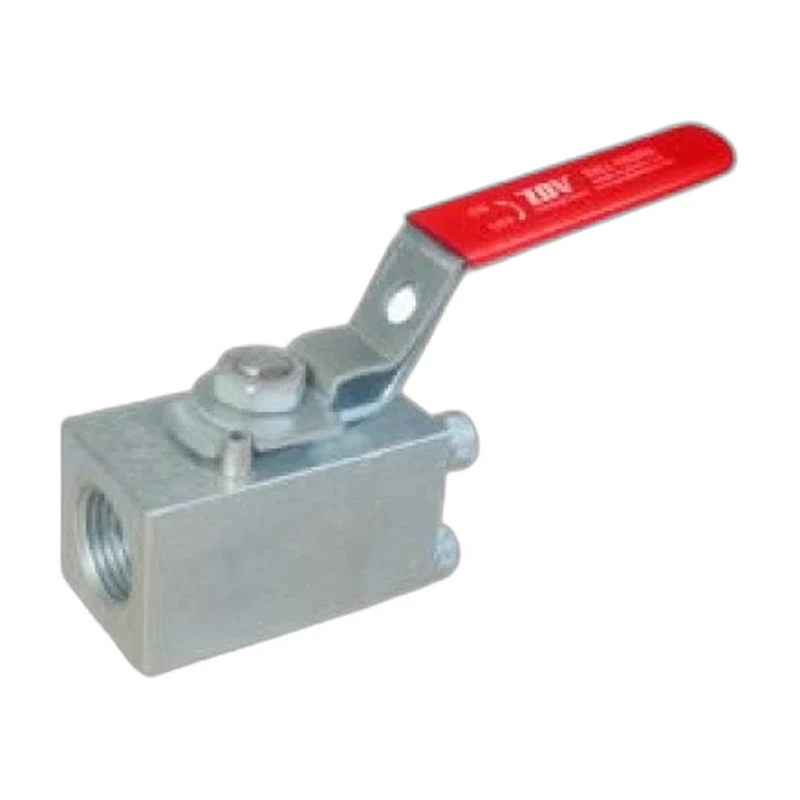

Threaded End Bolted Body Floating Ball Valve
A forged carbon steel bolted-body floating ball valve rated to 3000 PSI WOG for small-bore high-pressure isolation.
Size1/4" to 1"Pressure3000 PSI (WOG)PortFull PortBodyTwo Piece
This bolted-body floating ball valve is forged from ASTM A105 carbon steel and rated to 3000 PSI WOG, with the bolted two-piece construction allowing seat and seal replacement without cutting the valve from the line. Sizes from 1/4 inch to 1 inch carry threaded NPT ends to ASME B1.20.1, an A182 F316 ball and stem, Delrin seats and a full port bore. It is well suited to small-bore, higher-pressure isolation in general service, air, water and oil and gas applications.
Specifications
Size Range
1/4" to 1"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
ASTM A105
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturers Standard
Key Features
- Forged A105 carbon steel body
- Bolted body for in-line seat replacement
- Floating ball with A182 F316 trim
- Full port bore
Options
- Locking handle
- Stem extension
- Mounting pad for actuation
Standards & Certifications
- ASME B16.34, MSS SP-110
- MSS SP-72, API 598
Dimensions
| Size | d(mm) | S(mm) | L(mm) | H(mm) | W(mm) | Weight(kgs) |
| 1/4″ | 9 | 31 | 57 | 26 | 96 | 0.45 |
| 1/2″ | 9 | 31 | 57 | 26 | 96 | 0.43 |
| 3/4″ | 19 | 50 | 92 | 40 | 120 | 1.60 |
| 1″ | 19 | 50 | 92 | 40 | 120 | 1.70 |
