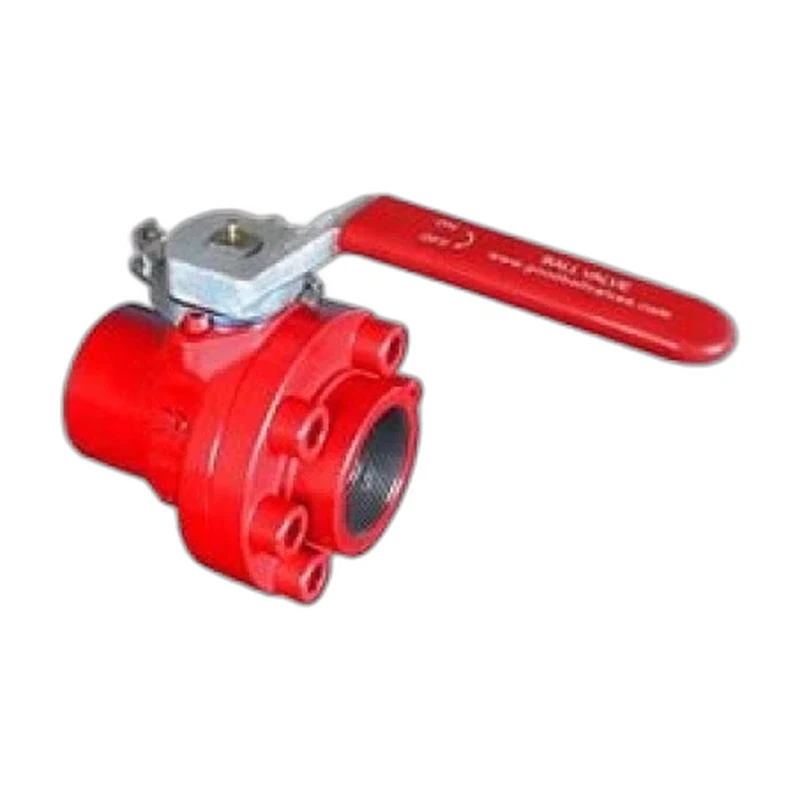

Threaded End Bolted Body Floating Ball Valve 5000PSI
A threaded-end bolted-body floating ball valve rated to 5000 PSI WOG for serviceable high-pressure duty.
This two piece (bolted body) ZQV ball valve is engineered for high-pressure isolation across a 2" to 4" size range, with a maximum allowable operating pressure of 3000 PSI to 5000 PSI WOG. The ASTM A105 / AISI 4130 carbon steel body carries an 400 series stainless steel ball and 400 series stainless steel stem, sealing against Delrin / PEEK seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) / API 5B LP connections and a full port / reduced port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece (Bolted Body) body construction
- Quarter-turn lever operation
- Rated to 3000 PSI to 5000 PSI WOG
- 400 series stainless steel ball with Delrin / PEEK seats
- Threaded NPT (ASME B1.20.1) / API 5B LP
Options
- Full port or reduced port
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110, API 6D, API 608
- Tested to MSS SP-72, API 598
