Purple Valves
PRPLZ042

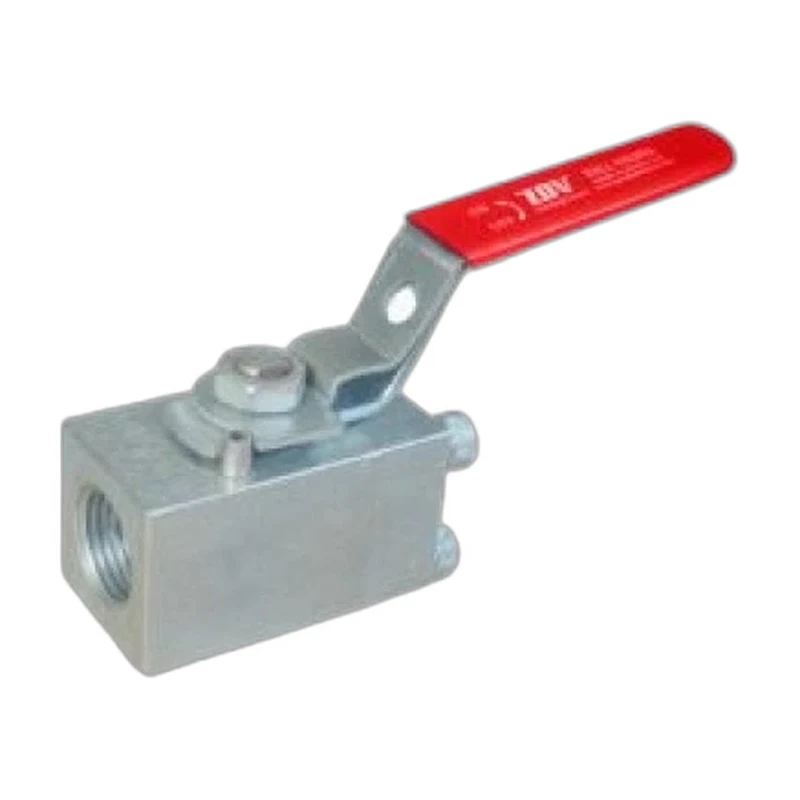

Threaded End Bolted Body Floating Ball Valve
A threaded-end bolted-body floating ball valve rated to 3000 PSI WOG for compact high-pressure isolation.
Size1/4" to 1"Pressure3000 PSI WOGPortFull PortBodyTwo Piece (Bolted Body)
This two piece (bolted body) ball valve is engineered for high-pressure isolation across a 1/4" to 1" size range, with a maximum allowable operating pressure of 3000 PSI WOG. The ASTM A105 carbon steel body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Delrin seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Size Range
1/4" to 1"
Pressure Rating
3000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
ASTM A105 carbon steel
Ball / Disc / Wedge Material
ASTM A182 F316 stainless steel
Seat Material
Delrin
Stem Material
ASTM A182 F316 stainless steel
Port Type
Full Port
Body Style
Two Piece (Bolted Body)
Operation
Lever
Applications
General service, air, water, oil & gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Two Piece (Bolted Body) body construction
- Quarter-turn lever operation
- Rated to 3000 PSI WOG
- ASTM A182 F316 stainless steel ball with Delrin seats
- Threaded NPT (ASME B1.20.1)
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
Dimensions
| Size | d(mm) | S(mm) | L(mm) | H(mm) | W(mm) | Weight(kgs) |
| 1/4″ | 9 | 31 | 57 | 26 | 96 | 0.45 |
| 1/2″ | 9 | 31 | 57 | 26 | 96 | 0.43 |
| 3/4″ | 19 | 50 | 92 | 40 | 120 | 1.60 |
| 1″ | 19 | 50 | 92 | 40 | 120 | 1.70 |
