Purple Valves
PRPLZ087

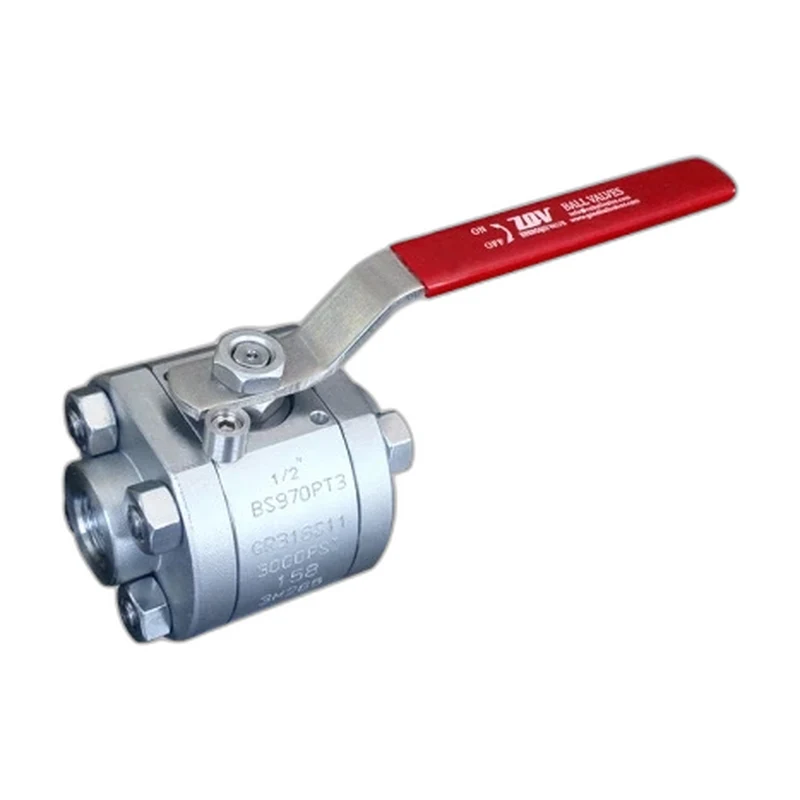

Three Piece Ball Valve EUE End Class 2500
A three-piece forged steel ball valve with EUE ends in Class 2500 for high-pressure oilfield service.
Size1/4" to 4"PressureANSI Class 2500 / 2000 to 6000 PSIPortFull Port / Reduced PortBodyThree Piece
This three-piece forged steel ball valve features EUE (external upset end) tubing connections to API 5B alongside NPT threaded options, rated to Class 2500. Body materials include ASTM A105 carbon steel plus A182 F316 and F304 stainless, in sizes from 1/4 inch to 4 inch. With full or reduced port options, RPTFE, Delrin or PEEK seats and a high-pressure rating from 2000 to 6000 PSI, it is well suited to demanding oilfield and oil and gas duties.
Specifications
Size Range
1/4" to 4"
Pressure Rating
ANSI Class 2500 / 2000 to 6000 PSI
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
EUE API 5B / Threaded NPT ASME B1.20.1
Body Material
ASTM A105 / A182 F316 / A182 F304
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
RPTFE / Delrin / PEEK
Stem Material
A182 F316 stainless
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas, oilfield
Design Standard
ASME B16.34, API 607, API 608
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- EUE tubing end connections for oilfield use
- Three-piece bolted body
- Class 2500 high-pressure rating
- Forged steel construction
- Full or reduced port options
Options
- EUE or NPT threaded ends
- Full or reduced port
- Carbon or stainless body
- RPTFE, Delrin or PEEK seats
Standards & Certifications
- ASME B16.34
- API 607 fire-safe
- API 608
- MSS SP-72
- API 598
