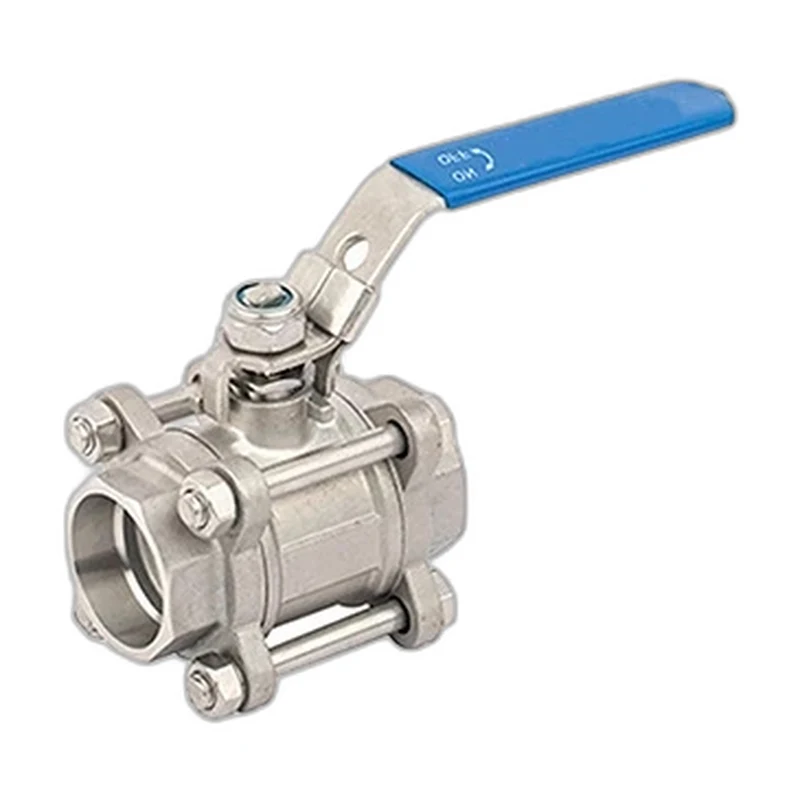

Three Piece Ball Valve
A general-purpose three-piece threaded ball valve with a full port bore for easy in-line maintenance.
This three-piece ball valve offers the convenience of in-line serviceability, with the swing-out centre section allowing the ball, seats and seals to be replaced without disturbing the connected pipework. Sizes from 1/4 inch to 4 inch are built with an SS316 ball and stem, a body in A351 CF8M stainless or A216 WCB carbon steel and PTFE or RPTFE seats. Threaded NPT, BSP, BSPT or ISO 7-1 ends, a full port bore and a 1000 PSI WOG rating make it a versatile choice for general service, air, water and oil and gas lines.
Specifications
Key Features
- Three-piece body for in-line servicing
- Full port bore for minimal pressure drop
- Stainless or carbon steel construction
- SS316 ball and stem
Options
- Locking handle
- Actuator mounting pad
- Stem extension
Standards & Certifications
- ASME B16.34, MSS SP-110
- MSS SP-72, API 598
