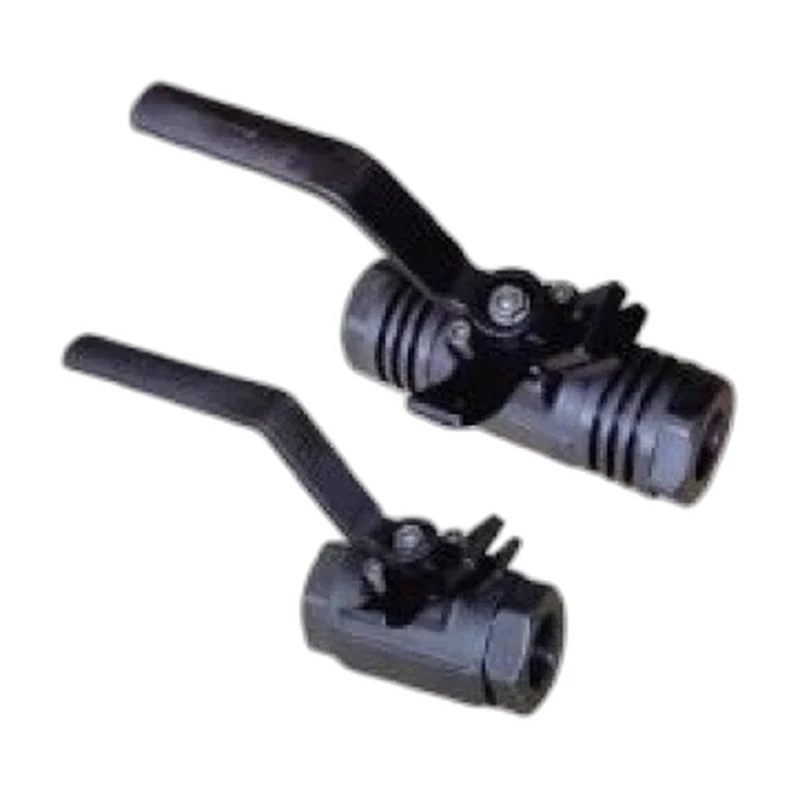

Three-Piece Threaded Forged Steel Floating Ball Valve
A forged steel three-piece threaded floating ball valve rated to 3000 PSI WOG for demanding isolation service.
Built around a forged body for strength and dimensional consistency, this three-piece floating ball valve carries a 3000 PSI WOG rating across sizes from 1/2 inch to 2 inch. The bolted three-piece construction allows the ball, seats and seals to be inspected and replaced without removing the valve from the line. Body material options span A351 CF8M stainless, A105 carbon and LF2 low-temperature forgings, paired with an A182 F316 ball and stem and Delrin or PEEK seats. Threaded NPT ends and full or reduced port options make it well suited to general service, air, water and oil and gas duties.
Specifications
Key Features
- Forged body for high-pressure integrity
- Three-piece design for easy in-line servicing
- Floating ball with A182 F316 trim
- Full and reduced port options
Options
- Reduced or full port
- Delrin or PEEK seats
- Stem extension or actuator pad
Standards & Certifications
- ASME B16.34, API 607
- MSS SP-72, API 598
