Series Q341F
PRPLZ148

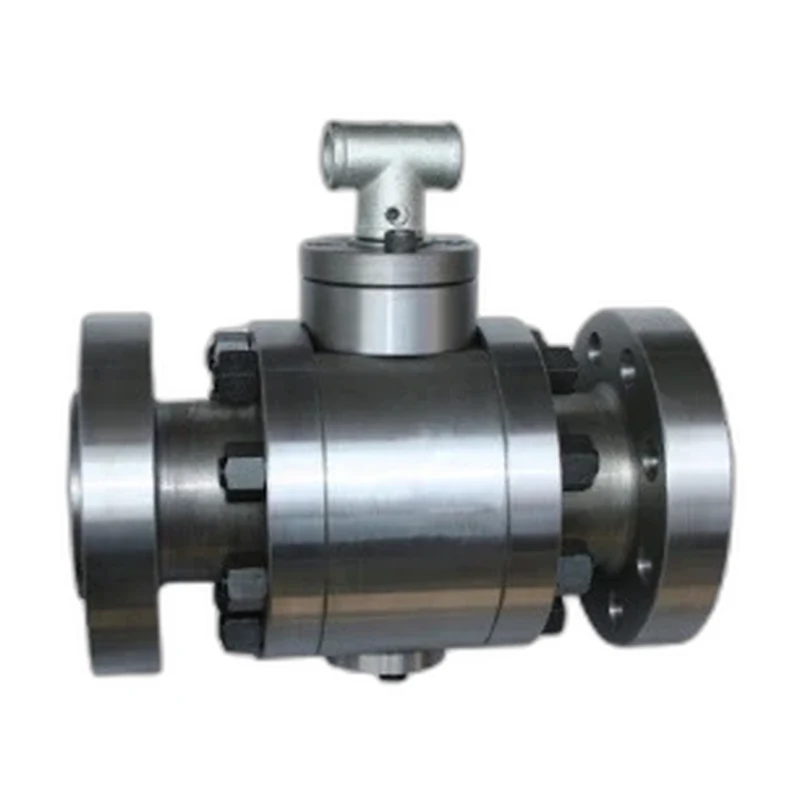

Three-Piece Trunnion Ball Valve
A three piece bodied trunnion mounted ball valve to API 6D, forged steel construction from 2 inch to 24 inch and ANSI Class 150 to 2500 for general service, air, water and oil and gas.
Size2 inch to 24 inchPressureANSI Class 150 to 2500PortFull Port / Reduced PortBodyThree Piece, Bolted Body
The Three-piece Trunnion Ball Valve combines a bolted three piece body with a trunnion mounted ball for low torque operation and reliable isolation. Built to API 6D in forged steel grades such as A105, F304 and F316, it handles general service, air, water and oil and gas duties from 2 inch to 24 inch across pressure classes 150 to 2500. Full or reduced port options are available with lever, gearbox, electric or pneumatic actuation, and the valve carries fire-safe certification to API 607 with a blow-out proof stem.
Specifications
Product Code
Q341F
Size Range
2 inch to 24 inch
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
ASME B16.5 RF, RTJ
Body Material
A105, LF2, F304, F316 (forged steel)
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port / Reduced Port
Body Style
Three Piece, Bolted Body
Operation
Manual, Pneumatic, Hydraulic, Electric
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, API 6D, ASME B16.10
Testing Standard
MSS SP-72, API 598, API 6D
Face to Face Standard
ASME B16.10
Key Features
- API 6D design
- Fire-safe certified to API 607
- Blow-out proof stem
- Adjustable stem packing with anti-static device
- Integral ISO mounting pad for actuation
- Integral locking device
- NACE MR-01-75 compliant
Options
- Body: WCB, A105, LF2, LCC or 316SS
- Seat: RPTFE, Viton, Devlon, Nylon or PEEK
- Ball: 316, 304, LF2 or A105+ENP
Standards & Certifications
- API 6D
- API 607 Fire-Safe
- NACE MR-01-75
Dimensions
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 7 (178) | 6 (150) | 4-3/4 (120.5) | 3-5/8 (92) | 9/16 (14.5) | 4-Ø3/4 (19) | 3-21/32 (93) |
| 3″ | 3 (75) | 8 (203) | 7-1/2 (190) | 6 (152.5) | 5 (127) | 11/16 (17.5) | 4-Ø3/4 (19) | 4-21/32 (118.5) |
| 4″ | 4 (100) | 9 (229) | 9-1/16 (230) | 7-1/2 (190.5) | 6-3/4 (171) | 29/32 (22.5) | 8-Ø3/4 (19) | 5-21/32 (143.5) |
| 6″ | 6 (150) | 15-1/2 (394) | 11 (280) | 9-1/2 (241.5) | 8-1/2 (216) | 15/16 (24) | 8-Ø7/8 (22) | 8-3/16 (208) |
| 8″ | 8 (201) | 18 (457) | 13-1/2 (345) | 11-3/4 (298.5) | 10-5/8 (270) | 1-1/16 (27) | 8-Ø7/8 (22) | 9-3/4 (248) |
| 10″ | 10 (252) | 21 (533) | 16 (405) | 14-1/4 (362) | 12-3/4 (324) | 1-9/64 (29) | 12-Ø1 (25) | 11-9/16 (294) |
| 12″ | 12 (303) | 24 (610) | 19 (485) | 17 (432) | 15 (381) | 1-1/4 (30.5) | 12-Ø1 (25) | 13-9/16 (344.5) |
| 14″ | 13-3/4 (334) | 27 (686) | 21 (535) | 18-3/4 (476) | 16-1/4 (413) | 1-5/16 (33.5) | 12-Ø1-9/64 (29) | 14-27/32 (377) |
| 16″ | 15-1/4 (385) | 30 (762) | 23-1/2 (595) | 21-1/4 (540) | 18-1/2 (470) | 1-3/8 (35) | 16-Ø1-9/64 (29) | 16-15/32 (418) |
| 18″ | 17-1/4 (436) | 34 (864) | 25 (635) | 22-3/4 (578) | 21 (533) | 1-1/2 (38.5) | 16-Ø1-1/4 (32) | 18-7/32 (463) |
| 20″ | 19-1/4 (487) | 36 (914) | 27-1/2 (700) | 25 (635) | 23 (584) | 1-5/8 (41.5) | 20-Ø1-1/4 (32) | 19-3/4 (502) |
| 24″ | 23-1/4 (589) | 42 (1067) | 32 (815) | 29-1/2 (749.5) | 27-1/4 (692) | 1-27/32 (46.5) | 20-Ø1-3/8 (35) | 23-1/16 (586) |
| 26″ | 25 (633) | 45 (1143) | 34-1/4 (870) | 31-3/4 (806.5) | 29-1/2 (749) | 2-11/16 (68) | 24-Ø1-3/8 (35) | 24-21/32 (626) |
| 28″ | 27 (684) | 49 (1245) | 36-1/2 (927) | 34 (864) | 31-1/2 (800) | 2-13/16 (71) | 28-Ø1-3/8 (35) | 25-11/32 (644) |
| 30″ | 29 (735) | 51 (1295) | 38-3/4 (984) | 36 (914.5) | 33-3/4 (857) | 3 (75) | 28-Ø1-3/8 (35) | 28-11/32 (720) |
| 32″ | 30-11/16 (779) | 54 (1372) | 41-3/4 (1060) | 38-1/2 (978) | 36 (914) | 3-3/16 (81) | 28-Ø1-5/8 (41) | 29-7/32 (742) |
| 36″ | 34-7/16 (874) | 60 (1524) | 46 (1168) | 42-3/4 (1086) | 40-1/4 (1022) | 3-1/2 (90) | 32-Ø1-5/8 (41) | 33-1/32 (839) |
| 40″ | 38-7/16 (976) | 69 (1753) | 50-3/4 (1289) | 47-1/4 (1200) | 44-1/2 (1124) | 3-1/2 (90) | 36-Ø1-5/8 (41) | 36 (913.5) |
| 42″ | 40-5/32 (1020) | 73 (1855) | 53 (1346) | 49-1/2 (1257) | 47 (1194) | 3-13/16 (97) | 36-Ø1-5/8 (41) | 37-1/8 (943) |
| 48″ | 45-29/32 (1166) | 84 (2134) | 59-1/2 (1511) | 56 (1422) | 53-1/2 (1359) | 4-1/4 (108) | 44-Ø1-5/8 (41) | 43-3/16 (1097) |
| 56″ | 53-1/2 (1360) | 98 (2489) | 68-3/4 (1746) | 65 (1651) | 62 (1575) | 4-7/8 (124) | 48-Ø1-7/8 (48) | 51-1/4 (1302) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 8-1/2 (216) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 13/16 (21) | 8-Ø3/4 (19) | 3-21/32 (93) |
| 3″ | 3 (75) | 11-9/64 (283) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/16 (27) | 8-Ø7/8 (22) | 4-21/32 (118.5) |
| 4″ | 4 (100) | 12 (305) | 10 (255) | 7-7/8 (200) | 6-7/8 (175) | 1-1/4 (30.5) | 8-Ø7/8 (22) | 5-21/32 (143.5) |
| 6″ | 6 (150) | 15-7/8 (403) | 12-1/2 (320) | 10-5/8 (270) | 8-1/2 (216) | 1-3/8 (35) | 12-Ø7/8 (22) | 8-3/16 (208) |
| 8″ | 8 (201) | 19-3/4 (502) | 15 (380) | 13 (330) | 10-5/8 (270) | 1-9/16 (40) | 12-Ø1 (25) | 9-3/4 (248) |
| 10″ | 10 (252) | 22-3/8 (568) | 17-1/2 (445) | 15-1/4 (387.5) | 12-3/4 (324) | 1-27/32 (46.5) | 16-Ø1-9/64 (29) | 11-9/16 (294) |
| 12″ | 12 (303) | 25-1/2 (648) | 20-1/2 (520) | 17-3/4 (451) | 15 (381) | 1-15/16 (49.5) | 16-Ø1-1/4 (32) | 13-9/16 (344.5) |
| 14″ | 13-3/4 (334) | 30 (762) | 23 (585) | 20-1/4 (514.5) | 16-1/4 (413) | 2-1/16 (52.5) | 20-Ø1-1/4 (32) | 14-27/32 (377) |
| 16″ | 15-1/4 (385) | 33 (838) | 25-1/2 (650) | 22-1/2 (571.5) | 18-1/2 (470) | 2-1/4 (56) | 20-Ø1-3/8 (35) | 16-15/32 (418) |
| 18″ | 17-1/4 (436) | 36 (914) | 28 (710) | 24-3/4 (628.5) | 21 (533) | 2-5/16 (59) | 24-Ø1-3/8 (35) | 18-7/32 (463) |
| 20″ | 19-1/4 (487) | 39 (991) | 30-1/2 (775) | 27 (686) | 23 (584) | 2-7/16 (62) | 24-Ø1-3/8 (35) | 19-3/4 (502) |
| 24″ | 23-1/4 (589) | 45 (1143) | 36 (915) | 32 (813) | 27-1/4 (692) | 2-11/16 (68.5) | 24-Ø1-5/8 (41) | 23-5/16 (592) |
| 26″ | 25 (633) | 49 (1245) | 38-1/4 (972) | 34-1/2 (876.5) | 29-1/2 (749) | 3 (79) | 28-Ø1-3/4 (45) | 24-15/16 (633) |
| 28″ | 27 (684) | 53 (1346) | 40-3/4 (1035) | 37 (940) | 31-1/2 (800) | 3-3/8 (86) | 28-Ø1-3/4 (45) | 26-3/4 (680) |
| 30″ | 29 (735) | 55 (1397) | 43 (1092) | 39-1/4 (997) | 33-3/4 (857) | 3-5/8 (92) | 28-Ø1-7/8 (48) | 28-3/4 (730) |
| 32″ | 30-11/16 (779) | 60 (1524) | 45-1/4 (1149) | 41-1/2 (1054) | 36 (914) | 3-7/8 (98) | 28-Ø2 (51) | 30-1/8 (765) |
| 36″ | 34-7/16 (874) | 68 (1727) | 50 (1270) | 46 (1168) | 40-1/4 (1022) | 4-1/8 (105) | 32-Ø2-1/8 (54) | 33-11/32 (847) |
| 40″ | 38-7/16 (976) | 77 (1956) | 48-3/4 (1238) | 45-1/2 (1156) | 42-3/4 (1086) | 4-1/2 (114) | 32-Ø1-3/4 (45) | 36-1/4 (921) |
| 42″ | 40-5/32 (1020) | 82 (2083) | 50-3/4 (1289) | 47-1/2 (1206.5) | 44-3/4 (1137) | 4-11/16 (119) | 32-Ø1-3/4 (45) | 36-7/8 (936) |
| 48″ | 45-29/32 (1166) | 85-1/2 (2170) | 57-3/4 (1467) | 54 (1372) | 51-1/4 (1302) | 5-9/32 (134) | 32-Ø2 (51) | 43-1/32 (1093) |
| 56″ | 53-1/2 (1360) | 108 (2743) | 67-1/4 (1708) | 63 (1600) | 59-3/4 (1518) | 6-1/16 (154) | 28-Ø2-3/8 (60) | 49-3/4 (1263) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 11-1/2 (292) | 6-1/2 (165) | 5 (127) | 3-5/8 (92) | 1 (26) | 8-Ø3/4 (19) | 4-1/4 (107) |
| 3″ | 3 (75) | 14 (356) | 8-1/4 (210) | 6-5/8 (168.5) | 5 (127) | 1-1/4 (32) | 8-Ø7/8 (22) | 5-1/2 (140) |
| 4″ | 4 (100) | 17 (432) | 10-27/32 (275) | 8-1/2 (216) | 6-7/8 (175) | 1-1/2 (38.5) | 8-Ø1 (25) | 6-15/32 (164) |
| 6″ | 6 (150) | 22 (559) | 14 (355) | 11-1/2 (292) | 8-1/2 (216) | 1-7/8 (48) | 12-Ø1-9/64 (29) | 8-3/4 (222) |
| 8″ | 8 (201) | 26 (660) | 16-1/2 (420) | 13-3/4 (349) | 10-5/8 (270) | 2-3/16 (56) | 12-Ø1-1/4 (32) | 10-11/16 (271) |
| 10″ | 10 (252) | 31 (787) | 20 (510) | 17 (432) | 12-3/4 (324) | 2-1/2 (64) | 16-Ø1-3/8 (35) | 12-1/2 (317.5) |
| 12″ | 12 (303) | 33 (838) | 22 (560) | 19-1/4 (489) | 15 (381) | 2-5/8 (67) | 20-Ø1-3/8 (35) | 14-3/16 (360) |
| 14″ | 13-3/4 (334) | 35 (889) | 23-3/4 (605) | 20-3/4 (527) | 16-1/4 (413) | 2-3/4 (70) | 20-Ø1-1/2 (39) | 15-3/8 (390) |
| 16″ | 15-1/4 (385) | 39 (991) | 27 (685) | 23-3/4 (603) | 18-1/2 (470) | 3 (77) | 20-Ø1-5/8 (41) | 17-5/16 (440) |
| 18″ | 17-1/4 (436) | 43 (1092) | 29-1/4 (745) | 25-3/4 (654) | 21 (533) | 3-1/4 (83) | 20-Ø7/16 (44) | 19-3/32 (485) |
| 20″ | 19-1/4 (487) | 47 (1194) | 32 (815) | 28-1/2 (724) | 23 (584) | 3-1/2 (89) | 24-Ø7/16 (44) | 21 (533) |
| 24″ | 23-1/4 (589) | 55 (1397) | 37 (940) | 33 (838) | 27-1/4 (692) | 4 (102) | 24-Ø2 (51) | 24-1/4 (616) |
| 26″ | 25 (633) | 57 (1448) | 40 (1016) | 36 (914.5) | 29-1/2 (749) | 4-1/4 (108) | 28-Ø2 (51) | 25-11/32 (643.5) |
| 28″ | 27 (684) | 61 (1549) | 42-1/4 (1073) | 38 (965) | 31-1/2 (800) | 4-7/16 (112) | 28-Ø2-1/8 (54) | 26-3/16 (665) |
| 30″ | 29 (735) | 65 (1651) | 44-15/16 (1130) | 40-1/4 (1022) | 33-3/4 (857) | 4-1/2 (114) | 28-Ø2-1/8 (54) | 29-21/32 (753) |
| 32″ | 30-11/16 (779) | 70 (1778) | 47 (1194) | 42-1/2 (1079.5) | 36 (914) | 4-5/8 (118) | 28-Ø2-1/8 (54) | 30-1/4 (768) |
| 36″ | 34-7/16 (874) | 82 (2083) | 51-3/4 (1314) | 47 (1194) | 40-1/4 (1022) | 4-7/8 (124) | 28-Ø2-5/8 (67) | 33-29/32 (861) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 14-1/2 (368) | 8-15/32 (215) | 6-1/2 (165) | 4-7/8 (124) | 1-1/2 (38.5) | 8-Ø1 (25) | 5 (126.5) |
| 3″ | 3 (75) | 15 (381) | 9-7/16 (240) | 7-1/2 (190.5) | 6-9/64 (156) | 1-1/2 (38.5) | 8-Ø1 (25) | 5-29/32 (150) |
| 4″ | 4 (100) | 18 (457) | 11-7/16 (290) | 9-1/4 (235) | 7-1/8 (181) | 1-3/4 (45) | 12-Ø1-1/4 (32) | 6-13/16 (172.5) |
| 6″ | 6 (150) | 24 (610) | 15 (380) | 12-1/2 (317.5) | 9-1/2 (241) | 2-1/4 (56) | 12-Ø1-1/4 (32) | 9-1/16 (230) |
| 8″ | 8 (201) | 29 (737) | 18-1/2 (470) | 15-1/2 (393.5) | 12-1/8 (308) | 2-1/2 (64) | 16-Ø1-1/2 (39) | 11-1/4 (285) |
| 10″ | 10 (252) | 33 (838) | 21-1/2 (545) | 18-1/2 (470) | 14-1/4 (362) | 2-3/4 (70) | 20-Ø1-1/2 (39) | 13 (330) |
| 12″ | 12 (303) | 38 (965) | 24 (610) | 21 (533.5) | 16-1/2 (419) | 3-1/8 (79.5) | 20-Ø1-1/2 (39) | 14-13/32 (366) |
| 14″ | 12-11/16 (322) | 40-1/2 (1029) | 25-3/16 (640) | 22 (559) | 18-3/8 (467) | 3-3/8 (86) | 20-Ø1-21/32 (42) | 16-11/32 (415) |
| 16″ | 14-11/16 (373) | 44-1/2 (1130) | 27-3/4 (705) | 24-1/4 (616) | 18-1/2 (524) | 3-1/2 (89) | 20-Ø1-3/4 (45) | 17-13/16 (452) |
| 18″ | 16-21/32 (423) | 48 (1219) | 31 (785) | 27 (686) | 20-5/8 (594) | 4 (102) | 20-Ø2 (51) | 19-3/4 (501) |
| 20″ | 18-9/16 (471) | 52 (1321) | 33-11/16 (855) | 29-1/2 (749.5) | 25-1/2 (648) | 4-1/4 (108) | 20-Ø2-1/8 (54) | 21-13/32 (544) |
| 24″ | 22-7/16 (570) | 61 (1549) | 41 (1040) | 35-1/2 (901.5) | 30-13/32 (772) | 5-1/2 (140) | 20-Ø2-5/8 (67) | 25-7/8 (657) |
| 26″ | 24-5/16 (617) | 65 (1651) | 42-3/4 (1086) | 37-1/2 (952.5) | 29-1/2 (749) | 4-7/8 (124) | 20-Ø2-7/8 (73) | 27-9/16 (700) |
| 28″ | 26-3/16 (665) | 69 (1753) | 46 (1168) | 40-1/4 (1022) | 31-1/2 (800) | 5-5/8 (143) | 20-Ø3 (79) | 28-5/8 (727) |
| 30″ | 28-1/3 (712) | 74 (1880) | 48-1/2 (1232) | 42-3/4 (1086) | 33-3/4 (857) | 5-7/8 (149) | 20-Ø3 (79) | 29-15/16 (760) |
| 32″ | 29-15/16 (760) | 80 (2032) | 51-3/4 (1314) | 45-1/2 (1156) | 36 (914) | 6-1/4 (159) | 20-Ø3-3/8 (86) | 31-5/16 (795) |
| 36″ | 33-21/32 (855) | 90 (2286) | 57-1/2 (1461) | 50-3/4 (1289) | 40-1/4 (1022) | 6-3/4 (172) | 20-Ø3-5/8 (92) | 34-7/8 (886) |
| Sizes | d | L | D | D1 | D2 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 2 (50) | 14-1/2 (368) | 8-15/32 (215) | 6-1/2 (165) | 4-7/8 (124) | 1-1/2 (38.5) | 8-Ø1 (25) | 5 (126.5) |
| 3″ | 3 (75) | 18-1/2 (470) | 10-7/16 (265) | 8 (203.2) | 6-5/8 (168) | 1-7/8 (48) | 8-Ø1-1/4 (32) | 6-1/2 (166) |
| 4″ | 3-15/16 (100) | 21-1/2 (546) | 12-13/64 (310) | 9-1/2 (241.3) | 7-5/8 (194) | 2-1/8 (54) | 8-Ø1-3/8 (35) | 8-5/8 (219) |
| 6″ | 5-11/16 (144) | 27-3/4 (705) | 15-9/16 (395) | 12-1/2 (317.5) | 9-3/4 (248) | 3-1/4 (83) | 12-Ø1-1/2 (39) | 10-1/2 (268) |
| 8″ | 7-1/2 (192) | 32-3/4 (832) | 19-3/32 (485) | 15-1/2 (393.7) | 12-1/2 (318) | 3-5/8 (92) | 12-Ø1-3/4 (45) | 11-15/16 (303) |
| 10″ | 9-13/32 (239) | 39 (991) | 23 (585) | 19 (482.6) | 14-5/8 (371) | 4-1/4 (108) | 12-Ø2 (51) | 14-3/32 (358) |
| 12″ | 11-5/16 (287) | 44-1/2 (1130) | 26-9/16 (675) | 22-1/2 (571.5) | 17-1/4 (438) | 4-7/8 (124) | 16-Ø2-1/8 (54) | 16-5/16 (414) |
| 14″ | 12-13/32 (315) | 49-1/2 (1257) | 29-1/2 (750) | 25 (635) | 19-1/4 (489) | 5-9/32 (134) | 16-Ø2-3/8 (60) | 18-1/2 (471) |
| 16″ | 14-11/64 (360) | 54-1/2 (1384) | 32-1/2 (825) | 27-3/4 (704.8) | 21-1/2 (546) | 5-3/4 (146.5) | 16-Ø2-5/8 (67) | 19-19/32 (498) |
| 18″ | 16 (406) | 60-1/2 (1537) | 36 (915) | 30-1/2 (774.7) | 24-1/8 (613) | 6-3/8 (162) | 16-Ø2-7/8 (73) | 22-7/16 (570) |
| 20″ | 17-7/8 (454) | 65-1/2 (1664) | 38-25/32 (985) | 32-3/4 (831.8) | 26-1/2 (673) | 7 (178) | 16-Ø3 (79) | 24 (611) |
| Sizes | d | L | D | D1 | D2 | D3 | T | N-ØD | H |
| Inside Flange Diameter | Face to Face | Outside Diameter of Flange | Bolt Circle | Outside Diameter of Raised Face | Pitch Diameter | Flange Thickness | No. of Holes / Hole Diameter | Center to Top | |
| 2″ | 1-21/32 (42) | 17-7/8 (454) | 9-1/4 (235) | 6-3/4 (171.4) | 5-1/4 (133) | 4 (101.6) | 2 (51) | 8-Ø1-9/64 (29) | |
| 3″ | 2-7/16 (62) | 23 (584) | 12 (305) | 9 (228.6) | 6-5/8 (168) | 5 (127) | 2-5/8 (67) | 8-Ø1-3/8 (35) | |
| 4″ | 3-7/16 (87) | 26-7/8 (683) | 14 (355) | 10-3/4 (273) | 8 (203) | 6-3/16 (157.18) | 3 (76.5) | 8-Ø1-21/32 (42) | |
| 6″ | 5-5/32 (131) | 36-1/2 (927) | 19-3/32 (485) | 14-1/2 (368.3) | 11 (279) | 9 (228.6) | 4-1/4 (108) | 8-Ø2-1/8 (54) | 12-3/64 (306) |
| 8″ | 7-3/64 (179) | 40-7/8 (1038) | 21-21/32 (550) | 17-1/4 (438.2) | 13-3/8 (340) | 11 (279.4) | 5 (127) | 12-Ø2-1/8 (54) | 14-7/32 (361) |
| 10″ | 8-25/32 (223) | 50-7/8 (1292) | 26-9/16 (675) | 21-1/4 (539.8) | 16-3/4 (425) | 13-1/2 (342.9) | 6-17/32 (166) | 12-Ø2-5/8 (67) | 16-3/4 (426) |
| 12″ | 10-7/16 (265) | 56-7/8 (1445) | 29-15/16 (760) | 24-3/8 (619.1) | 19-1/2 (495) | 16 (406.4) | 7-9/32 (185) | 12-Ø2-29/32 (74) | 18-27/32 (479) |
