Purple Valves
PRPLZ067

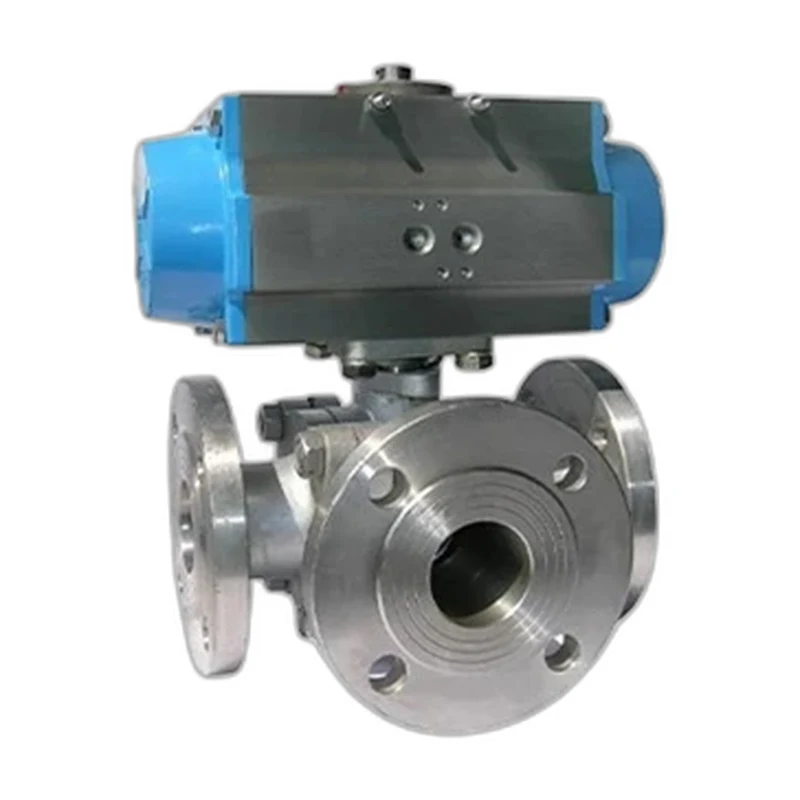

Three Way Ball Valve
Three Way Ball Valve flanged floating ball valve for tight shut-off across general process service.
Size2" to 8”PressureANSI Class 150 to 600PortFull Port / Reduced PortBodyThree Way
The Three Way Ball Valve is a flanged ball valve designed around a floating ball arrangement that drives the ball firmly against the downstream seat for tight, bubble-free shut-off. Constructed from A351 CF8M / A216 WCB and available in sizes 2" to 8”, it offers flanged connectivity to ASME B16.5 for straightforward inline installation and reliable isolation across air, water, oil and gas and general process service.
Specifications
Size Range
2" to 8”
Pressure Rating
ANSI Class 150 to 600
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
ASME B16.5
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS304 / SS316
Seat Material
PTFE , RPTFE,PEEK,DELRIN
Stem Material
SS304 / SS316
Port Type
Full Port / Reduced Port
Body Style
Three Way
Operation
Lever / Wrench (gear or actuator available on larger sizes)
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , ASME B16.5 , API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Floating ball design for positive, tight shut-off
- Flanged ASME B16.5 ends for simple inline mounting
- Blowout-proof stem for operational safety
- Available in 2" to 8” size range
- Manufactured and tested to recognised API and MSS standards
Options
- Locking handle
- Gear operator
- Electric or pneumatic actuation
- Stem extension
Standards & Certifications
- ASME B16.34
- ASME B16.5
- API 6D
