Purple Valves
PRPLZ046

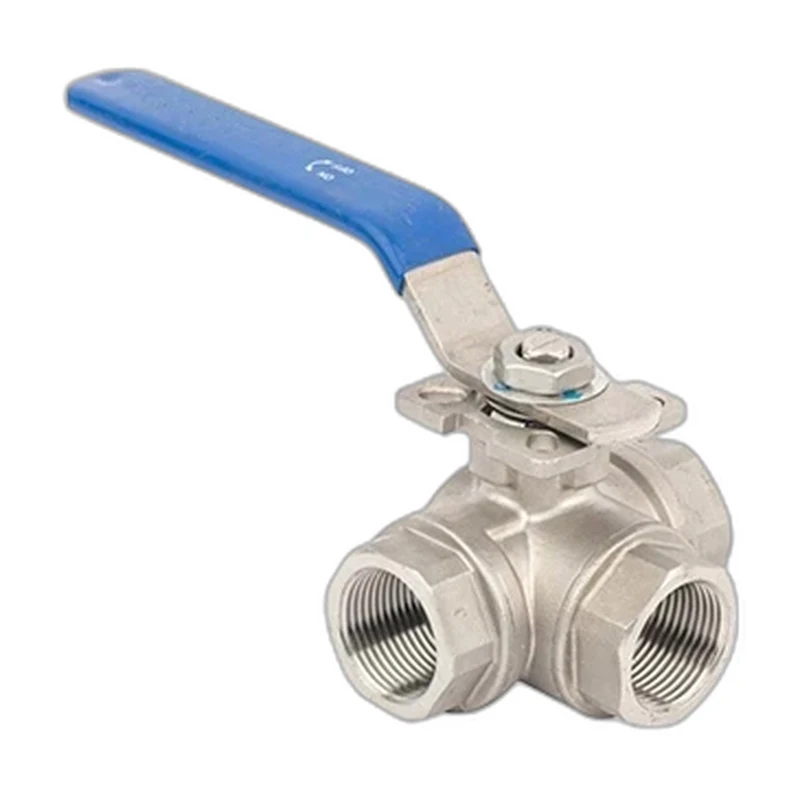

Three Way Threaded Ball Valve
A three-way threaded ball valve for diverting or mixing flow between two outlets in general service lines.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull Port / Reduced PortBodyThree Piece
This three-way ball valve uses an L-port or T-port ball to divert, mix or select flow between two outlets from a single valve, simplifying piping in blending and routing applications. The three-piece body is offered in A351 CF8M stainless or A216 WCB carbon steel with an SS316 ball and stem and PTFE or RPTFE seats. Sizes from 1/4 inch to 4 inch with NPT, BSP, BSPT or ISO 7-1 ends, full or reduced port options and a 1000 PSI WOG rating suit general service, air, water and oil and gas duty.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
NPT , BSP,BSPT,ISO7-1
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS316
Seat Material
PTFE / RPTFE
Stem Material
SS316
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturers Standard
Key Features
- L-port or T-port ball for diverting or mixing
- Three-piece body construction
- Stainless or carbon steel options
- Full and reduced port configurations
Options
- L-port or T-port ball
- Actuator mounting pad
- Locking handle
Standards & Certifications
- ASME B16.34, MSS SP-110
- MSS SP-72, API 598
