Purple Valves
PRPLZ068

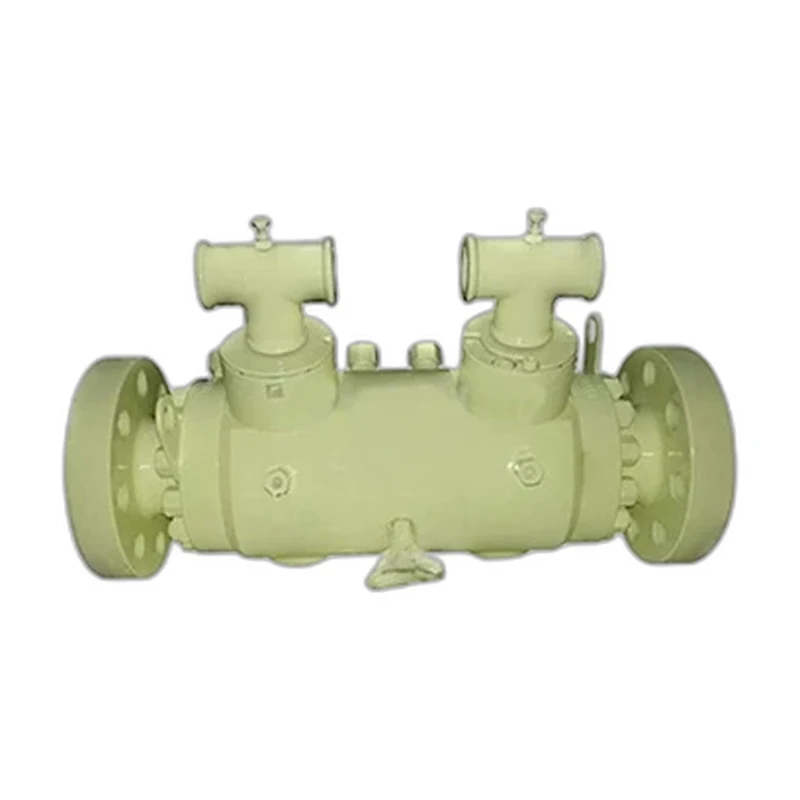

Trunnion DBB Ball Valve
Trunnion Dbb Ball Valve flanged floating ball valve for tight shut-off across general process service.
Size1/2" to 4”PressureANSI Class 150 to 2500PortFull Port / Reduced PortBodyThree Piece
The Trunnion Dbb Ball Valve is a flanged ball valve designed around a floating ball arrangement that drives the ball firmly against the downstream seat for tight, bubble-free shut-off. Constructed from A105 ,F304 ,F316 and available in sizes 1/2" to 4”, it offers flanged connectivity to ASME B16.5 for straightforward inline installation and reliable isolation across air, water, oil and gas and general process service.
Specifications
Size Range
1/2" to 4”
Pressure Rating
ANSI Class 150 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
ASME B16.5
Body Material
A105 ,F304 ,F316
Ball / Disc / Wedge Material
SS304 / SS316
Seat Material
PTFE , RPTFE,PEEK,DELRIN
Stem Material
SS304 / SS316
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Operation
Lever / Wrench (gear or actuator available on larger sizes)
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , ASME B16.5 , API 6D
Testing Standard
MSS SP-72, API 598
Face to Face Standard
ASME B16.10
Key Features
- Floating ball design for positive, tight shut-off
- Flanged ASME B16.5 ends for simple inline mounting
- Blowout-proof stem for operational safety
- Available in 1/2" to 4” size range
- Manufactured and tested to recognised API and MSS standards
Options
- Locking handle
- Gear operator
- Electric or pneumatic actuation
- Stem extension
Standards & Certifications
- ASME B16.34
- ASME B16.5
- API 6D
