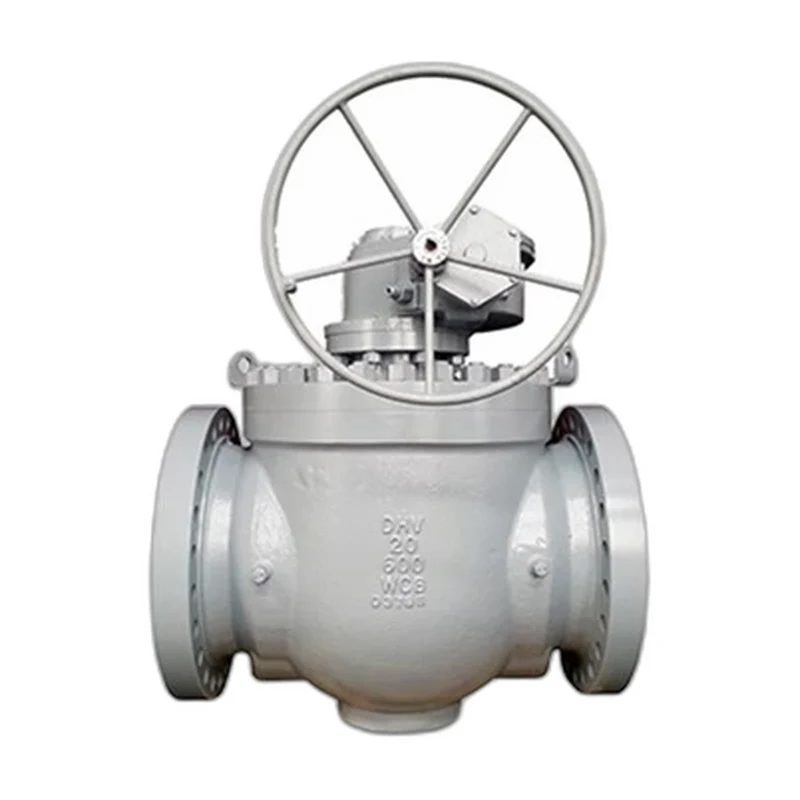

Trunnion Top Entry Ball Valve
A trunnion-mounted top-entry ball valve for high-pressure pipeline isolation with in-line maintainability.
This trunnion-mounted ball valve uses a top-entry body so the trim can be inspected and serviced without removing the valve from the pipeline, while the trunnion-supported ball reduces operating torque and improves sealing at higher pressures. Sizes from 2 inch to 6 inch are built with an A351 CF8M stainless or A216 WCB carbon steel body, an SS304 or SS316 ball and stem and a choice of PTFE, RPTFE, PEEK or Delrin seats. Flanged ASME B16.5 ends and an ASME B16.10 face-to-face dimension support Class 150 through Class 2500 service in general, air, water and oil and gas applications.
Specifications
Key Features
- Top-entry body for in-line maintenance
- Trunnion-mounted ball for low torque
- Wide Class 150 to Class 2500 pressure range
- Flanged ASME B16.5 ends
Options
- Soft or metal seats
- Gear or actuator operation
- Full or reduced port
Standards & Certifications
- ASME B16.34, ASME B16.5, API 6D
- MSS SP-72, API 598
