Purple Valves
PRPLZ048

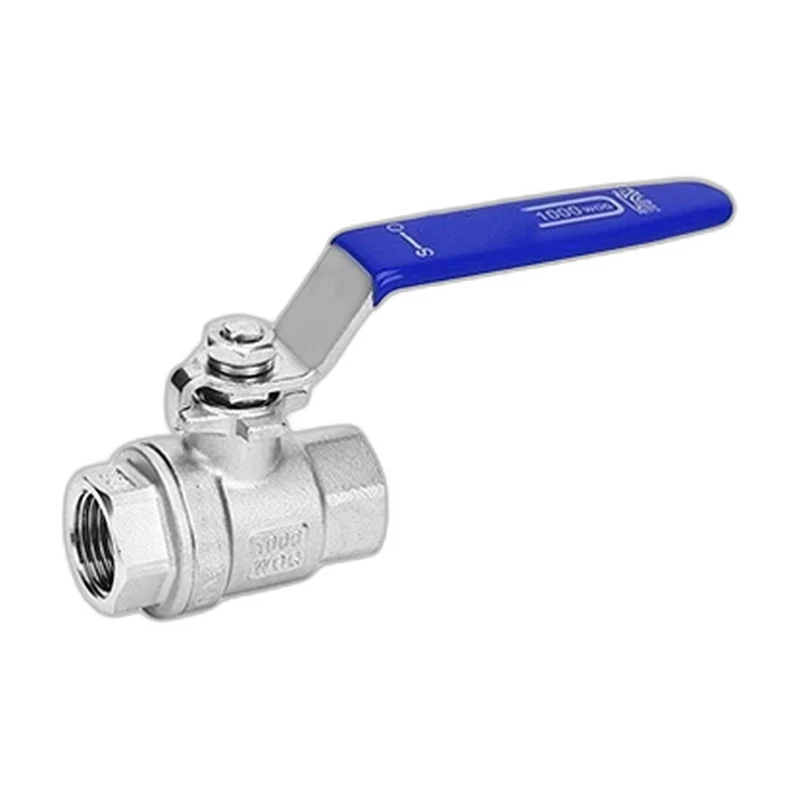

Two Piece Ball Valve
A general-purpose two-piece threaded ball valve with a full port bore for everyday isolation duty.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyTwo Piece
This two-piece ball valve provides dependable on/off isolation in a compact, economical package, with the body splitting into two sections for assembly around the ball and seats. Sizes from 1/4 inch to 4 inch are built with an SS316 ball and stem, a body in A351 CF8M stainless or A216 WCB carbon steel and PTFE or RPTFE seats. Threaded NPT, BSP, BSPT or ISO 7-1 ends, a full port bore and a 1000 PSI WOG rating make it a versatile choice for general service, air, water and oil and gas lines.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
NPT , BSP,BSPT,ISO7-1
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS316
Seat Material
PTFE / RPTFE
Stem Material
SS316
Port Type
Full Port
Body Style
Two Piece
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturers Standard
Key Features
- Two-piece body construction
- Full port bore for minimal pressure drop
- Stainless or carbon steel options
- SS316 ball and stem
Options
- Locking handle
- Actuator mounting pad
- Stem extension
Standards & Certifications
- ASME B16.34, MSS SP-110
- MSS SP-72, API 598
