Purple Valves
PRPLZ015
Union

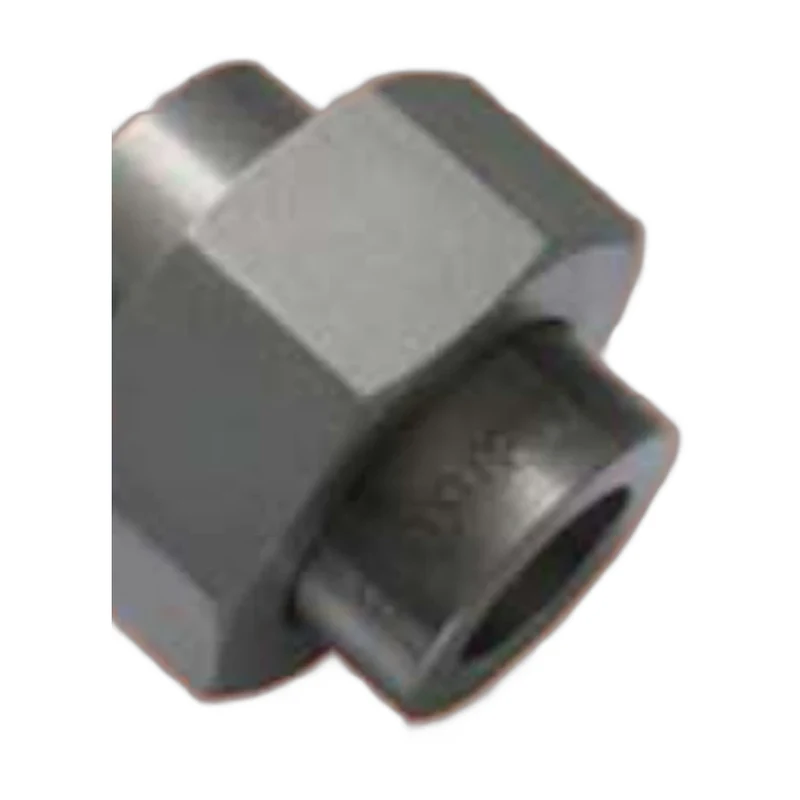

Forged steel union for quick assembly and breakdown of threaded pipe joints.
Size1/8" to 4"PressureClass 2000, 3000 and 6000 LB
The Purple Valves forged steel union allows pipework to be assembled and dismantled without rotating the pipe, ideal where equipment must be removed for maintenance. Manufactured to MSS-SP-83 and ASME B16.11 from forged A105 carbon steel in Class 2000, 3000 and 6000 LB with threaded or socket weld ends.
Specifications
Size Range
1/8" to 4"
Pressure Rating
Class 2000, 3000 and 6000 LB
End Connections
Threaded (NPT) and socket weld to ASME B16.11
Body Material
Forged carbon steel A105 (stainless steel available on request)
Applications
Oil and gas, petrochemical, industrial processing, power generation, water and utility pipework
Design Standard
ASME B16.11
Key Features
- Forged A105 carbon steel construction
- Class 2000, 3000 and 6000 LB ratings
- Threaded and socket weld ends
- Manufactured to MSS-SP-83
- Three-piece design for easy breakout
- Sizes 1/8" to 4"
Standards & Certifications
- ASME B16.11, MSS-SP-83
