Purple Valves
PRPLZ049

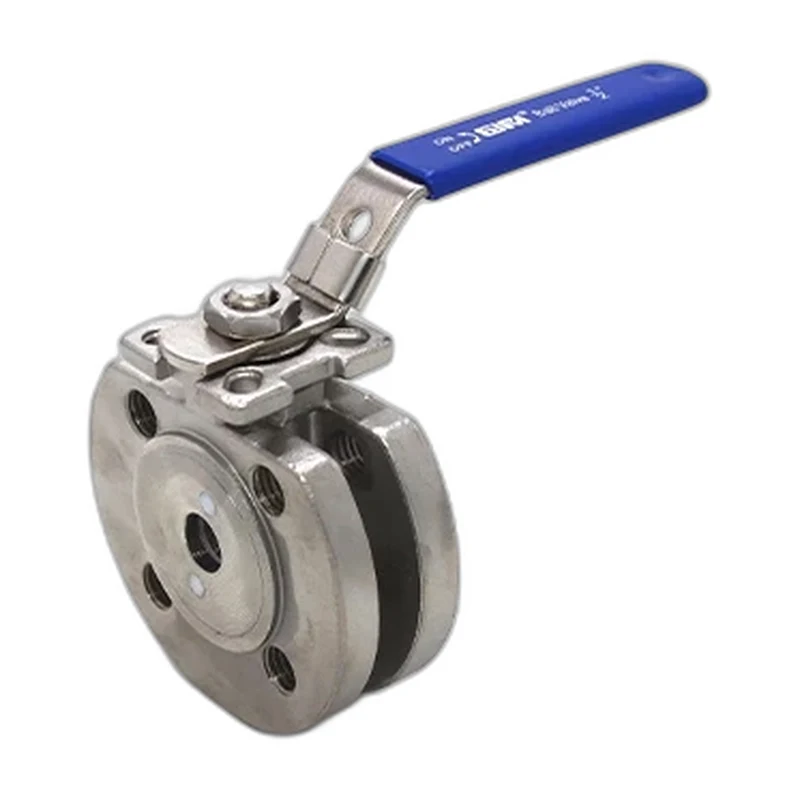

Wafer Ball Valve
A wafer-style ball valve that mounts between flanges for a compact, lightweight isolation solution.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull Port / Reduced PortBodyThree Piece
This wafer ball valve is designed to clamp between two pipe flanges, saving weight and space compared with a flanged-body valve while still providing tight shutoff. Sizes from 1/4 inch to 4 inch are built with an SS316 ball and stem, a body in A351 CF8M stainless or A216 WCB carbon steel and PTFE or RPTFE seats. ASME B16.5 flange-compatible ends, full or reduced port options and a 1000 PSI WOG rating suit general service, air, water and oil and gas applications where a compact footprint is preferred.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
ASEM B16.5
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
SS316
Seat Material
PTFE / RPTFE
Stem Material
SS316
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturers Standard
Key Features
- Compact wafer body for flange mounting
- Lightweight, space-saving design
- Stainless or carbon steel construction
- Full and reduced port options
Options
- Full or reduced port
- Actuator mounting pad
- Locking handle
Standards & Certifications
- ASME B16.34, MSS SP-110
- MSS SP-72, API 598
