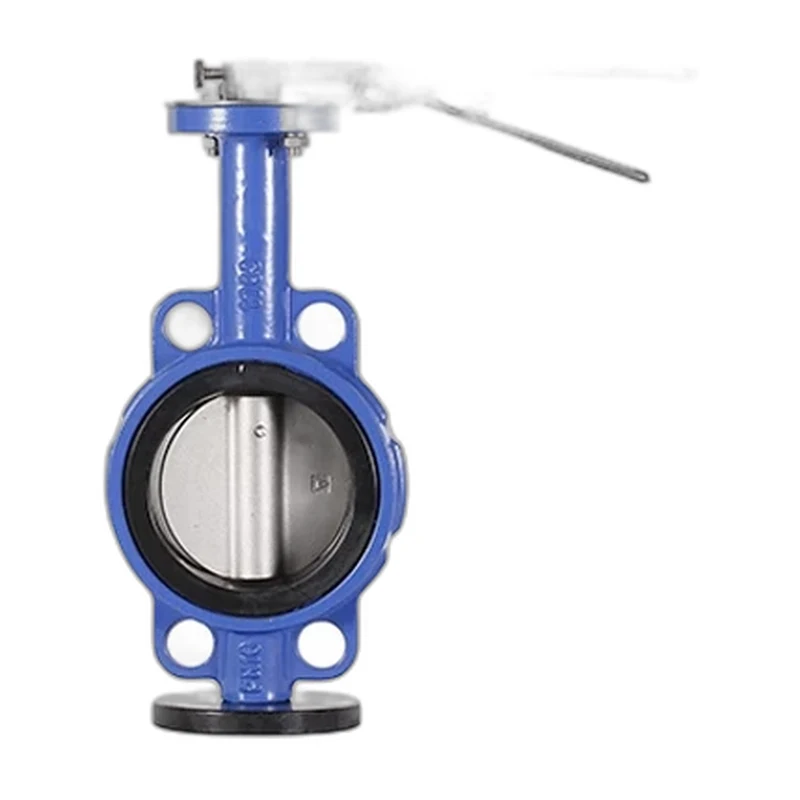

Wafer Butterfly Valve
Compact wafer-type butterfly valve for quarter-turn on/off and throttling control in space-restricted piping.
The ZQV Wafer Butterfly Valve uses a quarter-turn disc to control flow within a short, lightweight body that clamps directly between two pipe flanges, making it ideal where space and weight are at a premium. A single 90-degree rotation moves the disc from fully open to fully closed, giving fast operation for both isolation and throttling duties. The resilient seat liner forms a bubble-tight seal around the disc and bore, while the wafer design lowers installation cost and simplifies maintenance on water, HVAC, air and general process services.
Specifications
Key Features
- Short, lightweight wafer body for tight installations
- Quarter-turn disc for fast on/off and throttling
- Resilient seat liner for bubble-tight shut-off
- Low cost and easy maintenance
Options
- Lever, gear, electric or pneumatic actuation
- EPDM, NBR or PTFE seat
- Ductile iron or stainless disc
Standards & Certifications
- API 609
- EN 593
- ASME B16.34
- API 598
