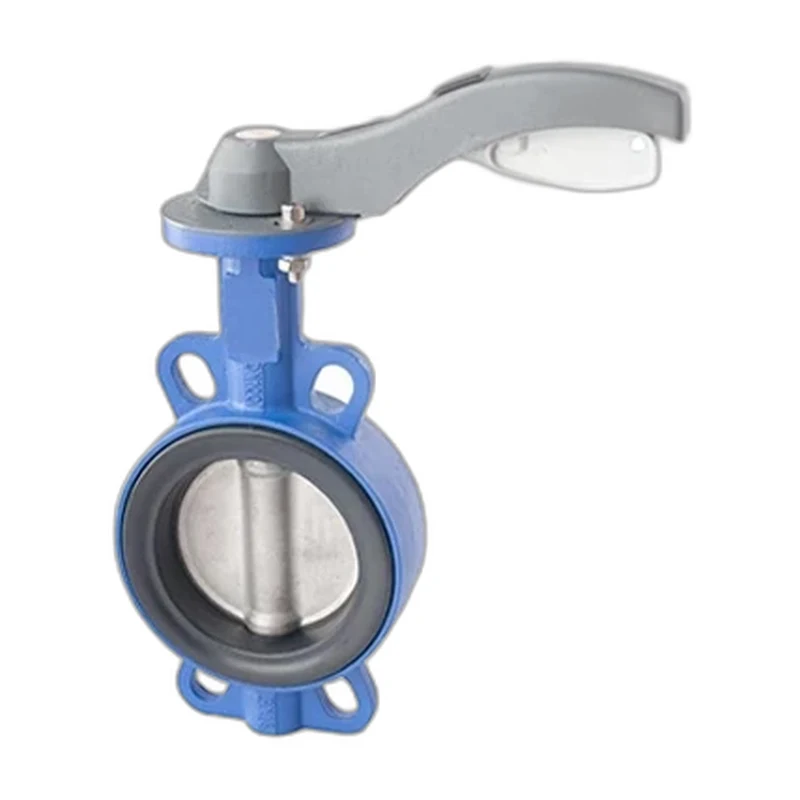

Wafer Concentric Butterfly Valve
Concentric resilient-seated wafer butterfly valve delivering reliable quarter-turn bubble-tight shut-off.
The ZQV Wafer Concentric Butterfly Valve places the stem, disc and seat on a single common centreline, so the rubber seat is in continuous contact with the disc edge throughout the full quarter-turn travel for dependable bidirectional, bubble-tight sealing. The slim wafer body fits between standard pipe flanges to save space and weight, and the elastomer liner fully isolates the body from the medium for excellent corrosion protection. Fast 90-degree operation makes it well suited to on/off and throttling control on water, slurry, HVAC and general industrial lines.
Specifications
Key Features
- Concentric design for full disc-to-seat contact and bidirectional sealing
- Elastomer liner fully isolates body from the medium
- Slim wafer body saves space and weight
- Fast quarter-turn operation
Options
- Lever, gear, electric or pneumatic actuation
- EPDM or NBR seat
- Various disc coatings
Standards & Certifications
- API 609
- EN 593
- ASME B16.34
- API 598
